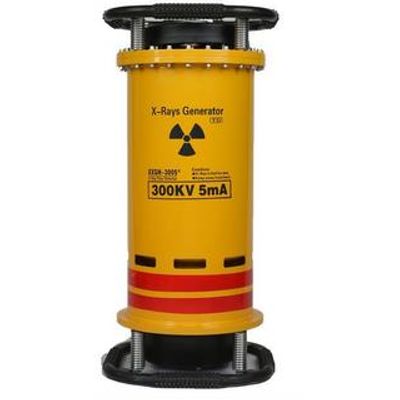

SFJCNDT - Model XXGH-3505Z -Industrial Portable Panoramic X-ray Flaw Detector (NDT)
XXGH-3505Z is an advanced industrial portable panoramic X-ray flaw detector designed for high-precision non-destructive testing (NDT) in critical sectors as aerospace, shipbuilding, and pipeline inspection. Featuring an adjustable 200-350 kV output voltage, 52 mm penetration (A3 steel), 360*30° panoramic imaging, SF6 gas insulation. Leading manufacturers Huangshi Shang Fang.
The XXGH-3505Z model is an industrial-grade portable panoramic X-ray flaw detector designed for non-destructive testing (NDT) across various sectors, including aerospace, shipbuilding, and pressure vessel inspection. Available through leading manufacturers like Huangshi Shang Fang Inspection equipment co., ltd, the XXGH-3505Z combines power, precision, and reliability for industrial NDT applications.
- Output Voltage: 180-350 kV (continuously adjustable)
- Power Supply: 220 ±10% VAC, 50 Hz
- Fube Current: 5 mA
- =ocus Size: 1.0x6.0 mm.
- Max Penetration: 52 mm for A3 steel.
- Beam Angle: 30°x360° (panoramic).
- Pooling System: Forced air cooling.
- Portability: Compact generator dimensions (345x345x715 mm) and weight (36kg).
- Durability: Ceramic X-ray tube for extended lifespan .
- Gas Insulation: SF6 gas-insulated models for higher stability.
- Safety: Complies with GBZ117-2006 standards, with interlocked lead doors and High-voltage time delay for enhanced operator radiation protection.
