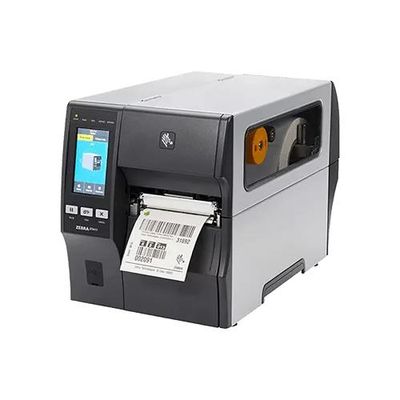

Zebra - Model ZT411 -Industrial Printer

Printing

• Thermal transfer and direct thermal printing Thin film printhead with E3" Element Energy"* Equalizer for superior print quality
• 203 dpi print resolution (8 dots / mm)
• Print speed per second up to 14" (356 mm / second)

Communication

• USB 2.0, high speed
• RS-232 Serial (RS-232C with DB9F connector; Configurable baud rate (2400 - 115,200kB), parity, and data bits. Stop bits at 1 or 2; Software (XON/XOFF), hardware (DTR/DSR or RTS/CTS) communication handshake protocols)
• 10/100 Ethernet: Supports networks internally integrated option that enables the use of Webview and Alert features
• Bluetooth*`` 4.1 (including Apple**)
• Dual USB Host

Operation

• 4.3-inch color touch display with intuitive menu for quick operation and settings management
• Bi-colored status LEDs for quick printer status
• ARM Cortex A7 processor
• 256 MB RAM memory (8 MB User Available)
• 512 MB Flash memory (64 MB User Available)
• Print Touch™ application
• Link-OS^-enabled
• Auto-switching 100-240V power supply
• ENERGY STAR*0 qualified
• Printhead element out detection

Media Support

• Dual media sensors — transmissive and reflective
• 3" media supply hanger
• Auto calibration when printer is turned on or when printhead is closed

Design

• Easy, side-loading metal print mechanism
• Tool-less printhead and platen replacement
• Metal media cover with enlarged clear viewing window
• Robust-gold user touch points indicating key adjustments
• Bi-fold media door decreasing overall operating space by 35%

Firmware

• Resident ZPLW, ZPL llM and EPL" programming languages, selectable through software or front panel
• XML-Enabled Printing — allows XML communications for barcode label printing eliminating license fees and printer server hardware while lowering customization and programming costs
