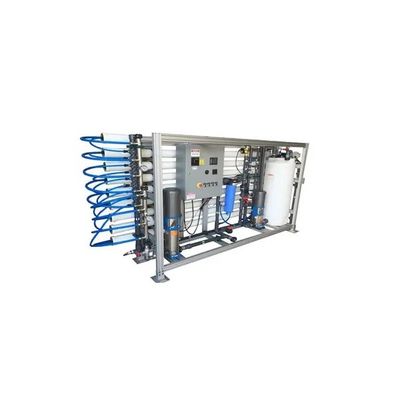

Advanced - Model LSWRO-0250 -Industrial Seawater Reverse Osmosis (RO) Desalination System

Standard

• Membrane flux rate below 10 GFD to extend membrane life and minimize fouling.
• Reciprocating pumps with nickel aluminum bronze fluid end; sized at no more than 65% of the maximum rated RPM.
• Suction and discharge pulsation dampeners (non-corrosive) or a non-pulsating type pump (depending on capacity)
• Dual or triplex multi-media filtration sized for manual or automatic backwash of one while continuing system operation
• Cartridge filtration
• Automatic inlet feed valve
• Automatic feed water flush on startup
• Automatic product water flush on shutdown
• Conductivity monitor/controller driven product diverter valve to dump unacceptable water
• Permanently piped membrane cleaning system.
• PLC driven control panel
• Energy recovery system (Turbo or Pressure exchangers) based on customer need
• Passivation treatment of all welded SS316L, Super Duplex S.S. piping
• 15″ HMI for operator interface
• Digital flow meter and pressure transducers
• Nema 4X electrical equipment
• Remote control monitoring
• TEFC electric motors

Optional equipment

• UV sterilization
• Green sand
• Iron removal
• Chlorination
• Dechlorination
• PH adjust
• MM filters ( sand, antracite, activate carbon )
• Ion exchanger
• Corrosion inhibitor
• Turbidity monitor

• 250000 GPD: Output
• 946 M3D: Output
• 173.6 GPM: Product
• 434 GPM: Feed
• 260.4 GPM: Reject
• 40 %: Recovery
