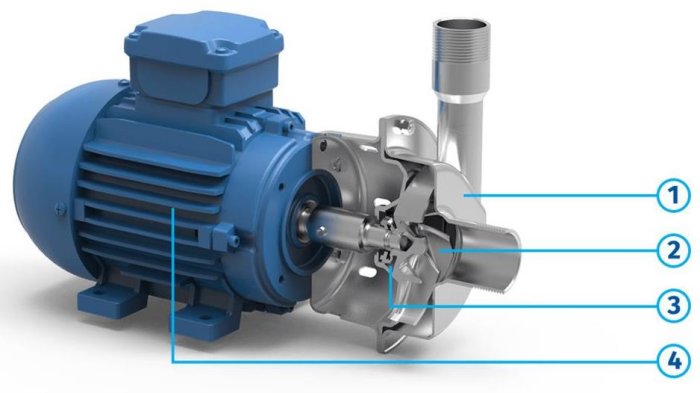

Packo - Model NP60 Series -Industrial Stainless Steel Centrifugal Pumps
FromPACKO INOX LTD
The Packo stainless steel centrifugal pumps of the NP60 series are low cost industrial pumps. They have investment cast open impellers. This series achieves an overall high efficiency, leading to a lower energy consumption for your production process. Thanks to its modular concept it also guarantees an easy maintenance.
Most popular related searches
stainless steel centrifugal pump
industrial stainless steel centrifugal pump
centrifugal pumping
centrifugal pump
stainless steel pump
industrial pump
industrial stainless steel pump
process pump
water treatment
textile water treatment
- High pump efficiency resulting in lower energy consumption
- Low NPSH values: less risk on cavitation
- Electropolished: higher resistance against corrosion
- Easy construction and easy maintenance: less downtime
- Easy to install
- Solid impellers compared to low cost spot welded versions
The NP60 pumps are mainly used for pure as well as slightly contaminated liquids up to a maximum viscosity of 500 cP.
They are often used as process pump for the washing of textiles, for water treatment, but also for pumping solvents, alcohols and chemicals.
- Pressed stainless steel with minimum thickness of 2 mm
- Investment cast open impellers
- Large seal cavity to guarantee liquid circulation around the seal
- Monobloc execution with std. IEC motors
Performance:
- max. flow rate: 40 m³/h
- max. differential head: 27 m
- max. inlet pressure: 3 bar
- max. liquid viscosity: 500 cP
- max. temperature: 95°C
- impeller type: open
- max. free passage: 15 mm
- max. motor power: 2.2 kW
- max. speed: 3000/3600 rpm
- available frequency: 50/60 Hz
