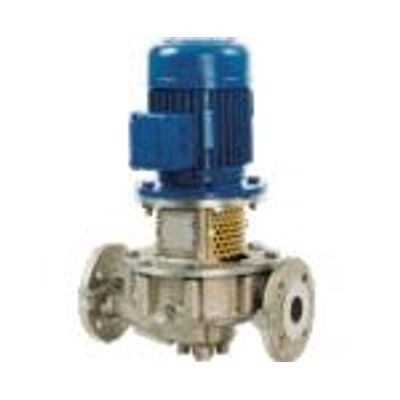

Flowserve-SIHI - Model ZLI -Industrial Standard Pump
Pumps of the series ZLI aresingle-stage resp. two-stage pumping units in compact designwith nominal performances according toEN 733 / DIN 24255as well as additional size DN 25, where suction and discharge branch are arranged opposite for direct installation into the pipe work. There is no common shaft for motor and pump. The motors used are of the standard type listed. Thanks to the process design it is possible to withdraw the whole insert unit without removing the casing of the pump from pipe work.
Volute pumps of the series ZLI in inline are used whenclear resp. turbid liquids without any solid particles have to be pumpedwithout problem. They are used mainly in applications likesteel,machineandautomobile construction,foodandsemi-luxuriesindustry,chemicalandpetrochemicalindustry,pharmaceuticalindustry,lacquerindustry,plastics and rubberindustry,iron and non-ferrousindustry,paper and pulpindustry andtextileindustry.
- Flow rate: up to 280 m³/h
- Head: up to 60 m
- Speed: max. 3,600 rpm
- Temperature: max. 120 °C
- Casing pressure: up to 16 bar
- Shaft seals: mechanical seal
- Materials: grey cast iron, stainless steel
