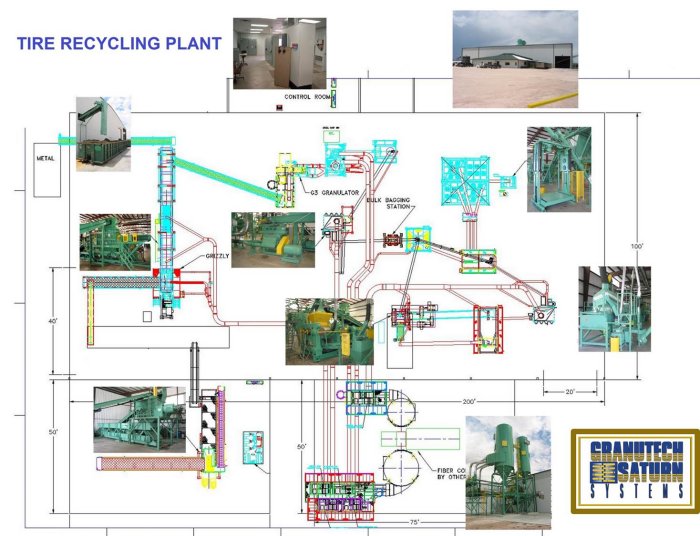

Saturn - Industrial Turnkey Tire Recycling Systems

As a complete system provider, Granutech-Saturn Systems brings you:

• Leading edge, best-in-class tire recycling technology in an integrated system level solution
• More than two decades’ proven experience and customer satisfaction in systems design, development and supply
• Highest capacity systems with flexibility to process all tire types (OTR, truck, auto, farm, and more)
• Modular designs to allow expansion as markets dictate
• Extremely durable – highly reliable – high duty cycle machinery designs

Our systems deliver unmatched results in tire processing, including:

• Exceptionally clean crumb rubber even from auto tires (this is important as other suppliers request truck tire feed to make clean crumb as it has less fiber)
• Smallest powder from an ambient grind system, 30 mesh, 40 mesh, 60 mesh, and smaller!
• Highly automated controls for maximum machinery performance and monitoring
• Tight crumb rubber blend technology to meet stringent client requirements

Your system options include:

• 2-stage system: reduces whole tires to steel free mulch material or a low steel fuel quality material. This system solution would typically be comprised of the Saturn Shredder series (dual or quad shaft) plus a grinder (Saturn Grizzly Series- M80 or S80 models).
• 3-stage system: 2-stage system plus a granulator or a refiner mill. If you wish to produce large granulate, and then reduce to a 1-6 mm material output, you would add our Saturn G-3 Granulator; for .5-3mm material output, you would add a Saturn G-4X Refiner Mill.
• 4-stage system: would reduce all material to 1-3mm if with the addition of a Granutech Powderizer, or all under 1mm with the Saturn G-4X refiner mill.
