SBM - Model HGM -industrial ultrafine grinding mill

Under the same finished final size and the same motor power, the capacity of the micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.


The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than an impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate. The lifecycle of spare parts is variable for the material’s hardness.


As no rolling bearings or screws in the grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.


The final fineness of the grinding materials can be adjusted between 150 meshes and 3000 mesh (74-5 micron). Environment-friendly


The application of pulse bag filters and mufflers greatly alleviates dust pollution and noise.


Let the material feed into the machine evenly, adjust the main speed to fit for ground material, the fineness more stable. To increase the capacity and efficiency, reduce the power consumption.

The yield is 40% higher than other mills.
High utilization rate of Wear material: 2-5 years.
Adjustable particle size: 150-3000 mesh.
High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.
Closed system, so it is the green and ideal equipment for environment protection.

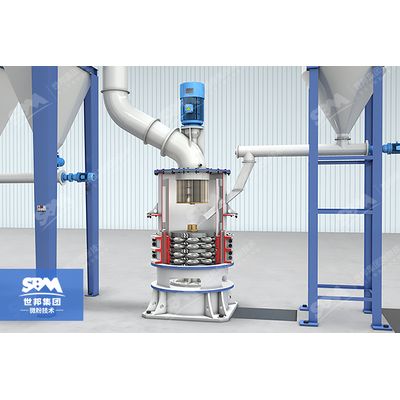

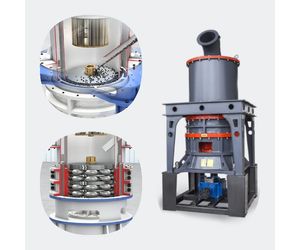

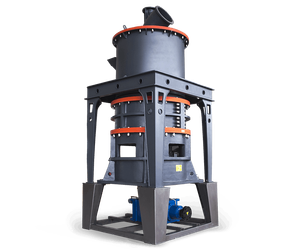

HGM ultrafine grinding mill is an industrial device that breaks solid materials into powder by grinding. Such comminuting is an important unit operation in many processes. It is usually used in metallurgy, building materials, chemical, and mine industries.

HGM Ultrafine grinding mill specialized in producing fine and superfine powder of non-inflammable non-explosive and brittle materials with Moh’s hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice, fly ash, etc., totally more than 100 kinds of materials.
