Depureco - Model TB 22 -Industrial Vacuum Cleaner

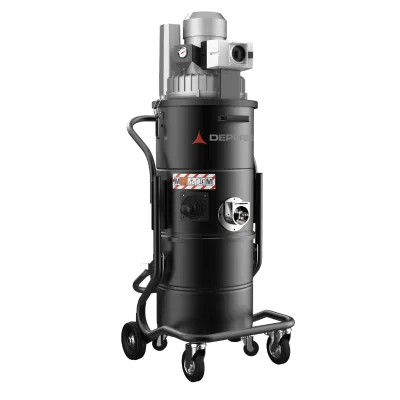

The TB 22 Industrial Vacuum Cleaner is a heavy-duty cleaning solution designed for rigorous industrial environments. It operates with a 2.2 kW suction unit utilizing a side channel blower that ensures continuous, maintenance-free operation. The vacuum is equipped with an M Class polyester filter that captures particles as small as 1 micron, offering robust protection for both the motor and nearby operators. The filtration system features an ergonomic manual shaker for quick and easy cleaning of the filter surface, thereby reducing downtime. The collected debris is stored in a sturdy steel container which can be easily moved thanks to its pivoting industrial wheels mounted on reinforced supports for stability. Optional upgrades for the TB 22 include various types of filters such as antistatic, Teflon, and HEPA, and additional features like a stainless steel bin and grounding options. Accessories available include starter and dry kits for different vacuuming needs. This vacuum cleaner is engineered to handle a variety of industrial applications including fine dust, toxic materials, and liquid suction.

Most popular related searches

industrial vacuum cleaner

The TB 22 model is an industrial vacuum fitted with a 400 V side channel turbine (Made in Italy), ideal for working continuously without the need for maintenance. The filter chamber contains a large surface polyester filter, certified as M Class (1-micron filtration efficiency), ideal for working with even the finest dust. In this industrial vacuum of the Depureco three-phase range, a different filter can be installed depending on the professional application. Teflon water-repellent filters, Nomex 250°C resistant filters, and filters with PTFE treatment for more binding and difficult dust are also available. The unit can be fitted with an H14 absolute filter on demand. The TB industrial vacuum is equipped with a large 45 lt detachable container that allows the operator to empty the vacuumed material easily. Disposable collection bags can also be used. A floating system can be provided in the container to vacuum liquids in complete safety.

SUCTION UNIT
The suction unit is a side channel blower with direct coupling between motor and impeller. The side channel blower is equipped with a safety valve to guarantee a totally safe continuous work, without any maintenance.

M CLASS FILTER
The filtration is guaranteed by a M class polyester filter. The star shape permits the passage of the air also when the filter is dirty. The textile of the filter is in M Class (BIA | En 60335-2-69). It means that all particles till 1 micron are stopped by the filter so as to protect the motors and the operator near the vacuum cleaner.

FILTER SHAKER
On one side of the filtration chamber there is an ergonomic manual shaker that permits to clean the filter easily and quickly, removing the dust and debris from the filter surface. Thanks to this smart cleaning system the operator can carry on working without changing or washing the filter.

COLLECTION BIN
The collected material is stocked inside a sturdy steel container. Behind the vacuum cleaner there is a metal handle that permits to drop down the bin. The bin can be easily moved because it is equipped by 4 pivoting industrial wheels. Each wheel is located on a reinforced support to guarantee the best stability during the movement, also when the container is full

Motor
Type: side channel blower
Voltage: 400 V
IP: 55
Continuous vacuum: 220 mBar
Maximum air flow: 280 m3/h
Safety valve: included
Noise level: 72 dB(A)
Frequency: 50/60 Hz
Power: 3 HP
Insulation class: F

Primary Filter
Type: star filter
Class EN 60335-2-69: M Class
Media: polyester
Filter cleaning: manual shaker

Machine
Suction inlet: 70 Ø mm
Dimensions: 550 x 620 mm
Height: 1353 mm
Weight: 55 Kg
