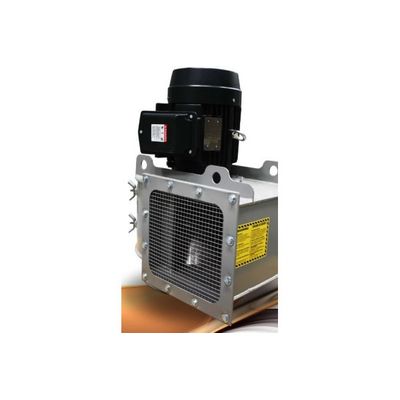

MAXFLO - Model DDB Series -Industrial Ventilation Fans & Blowers
The D DB Series blower have a backward inclined wheel mounted directly on to the motor shaft. The motor is mounted outside the airflow and the design meets AMCA ‘C’ standards. Maxflo blower design maximizes efficiency while reducing power loss, maintenance and troublesome adjustments. A range of motors/blowers are available to cover airflows up to 10 000 cfm at 12“ H2O.
Most popular related searches
industrial ventilation fan
blower
industrial fan
HVAC system
clean air
dust collector
HVAC industry
industrial HVAC system
industrial ventilation system
AMCA
- Reduced initial cost : With the absence of pulleys, fan bearings and belts, The high efficiency blower design offer competitive manufacturing costs and lower power consumption.
- Low maintenance cost: The optional quick access door and the absence of pulleys, fan bearings and belts reduces maintenance time and costs.
- Compact design : Mounts directly to the dust collector’s clean-air plenum, eliminating costly transitions.
- Explosion-proof motor (optional): This class of motor is rated for use in explosive areas (outside the dirty air stream).
- Pressures available up to 15“ H2O:Static pressure capabilities help maintain CFM and air flow through heavy ductwork arrangement.
