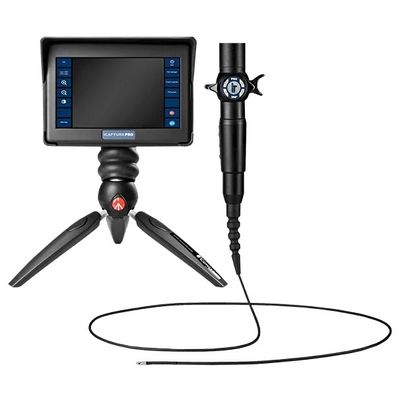

Fiberscope iLED - Model Pro -Industrial Videoscope
FromFIBERSCOPE.net
When it comes to high-end, high-resolution videoscopes with interchangeable video probes, the new iLED`s blow the rest away! These units are built on the same platform as the high-end IRIS PRO systems, however, the probes are interchangeable not integrated into the monitor, meaning you can use different probes and objective lenses for different inspection areas. This makes the iLED PRO industrial borescopes great for all types of applications including aviation and auto engines, fuel tanks, welds, NDT, turbines, industrial machinery, police, customs, border protection, and military applications.
Most popular related searches
industrial video borescope
industrial borescope
videoscope
objective lens
temperature probe
borescope camera
video borescope
optical monitoring
industrial videoscope
borescope
- Ø2.4 - 8.0mm Probes
- Mechanical 2-way/4-way Tip Articulation

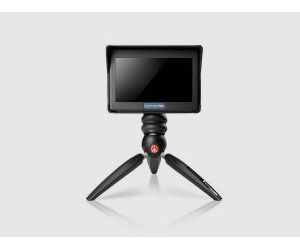

- Portable with Stand-alone Screen
- 7-inch High-Resolution TFT Touch Screen Display
- Rotatable + Swiveling Monitor on Adjustable Tripod
- Splash-proof and Shockproof
- Powerful and Self-explanatory EIOS Sofware
- Truly Portable
- Display size: 7.0"
- Display resolution: 1280 x 800 pixels
- User Interface: EIOS (Endoscopic Imaging Operation System)
- Interface: USB
- Primary power supply: Rechargeable Li-ion battery
- Secondary power supply: 12 V adapter (optional accessory)
- Storage: internal memory 16GB / Optional USB port (up to 32GB)
- Video format: MPEG4 (.avi)
- Picture format: BMP (.bmp), JPEG (.jpg), PNG (.png)
- Image Analysis Method: Comparative optical measurement
- Illumination: High Power LED on the tip
- Light adjustment 3-stage
- White balance: Factory default or user-defined
- Zoom: Yes. Digital
- Invert: Horizontal and vertical image inversion
- Brightness, Contrast, Colour: Adjustable
- Text annotation: Built-in text overlay generator
- Ergonomics: Rotatable + siweling display
- Weight: 1.28Kg
- Dimensions (mm): height x width x depth 129 x 187 x 104
- Housing: Robust PU with rubber full protection
- Working temperature system: (-25 °C) - (+ 46 °C)
- Storage temperature: (-25 °C) - (+ 60 °C)
- Humidity: 95% max. - not condensing

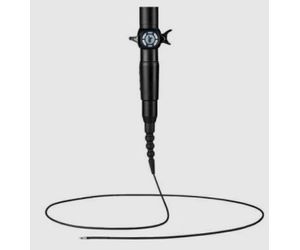

- Ergonomic Levers for Precise Articulation Control
- One-touch Image Capture
- Coated Metal Handle
- High-resolution Super HAD CCD Image Sensor
- Heat Resistant up to 280°F (140°C) for a Duration of Max. 5 min.
- Waterproof Tungsten Braiding
- Built-in Powerful LED`s
- Interchangeable Objective Lenses of Different Fields of View, Angles of View, and Working Distances
- Diameter: 4.0mm, 6.0mm, 8.0mm
- Working Length: 3.3 - 13.1ft, 3.3 - 24.6ft, 3.3 - 24.6ft (1.0 - 4.0m, 1.0 - 7.5m, 1.0 - 7.5m)
- Articulation: 4-way, 360° control (Control Levers)
- Image sensor: High-Resolution Super HAD CCD Image Sensor
- Camera Control Unit: Intelligent image enhancement control
- Illumination Type: High Power LED (Integrated)
- Average LED lamp lifetime: approx. 5.000 hrs
- Integrated Objective Lenses: Yes, for 4mm probe
- Side view tip adapter: Yes
- Interchangeable objective lens: Yes, for 6mm and 8mm probes
- Braid: Tungsten Braid on Poly-Urethane Jacket
- Working temperature probe: 140 °C (284 °F) max. 5 minutes, regular: (-25 °C to + 80 °C)
- Waterproof: probe and distal end up to 1 bar - 10.2m H2O
- Stability: Probe and distal end against oils and saline solution (5%)
- Videoscope Unit
- Battery
- Battery Charger
- Power Adapter
- SD Memory Card
- User`s manual
