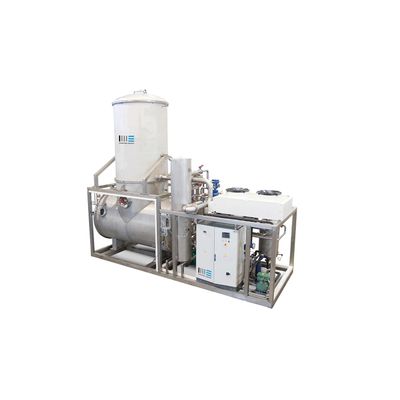

IWE - Model HWS ME Series -Industrial Water Evaporators

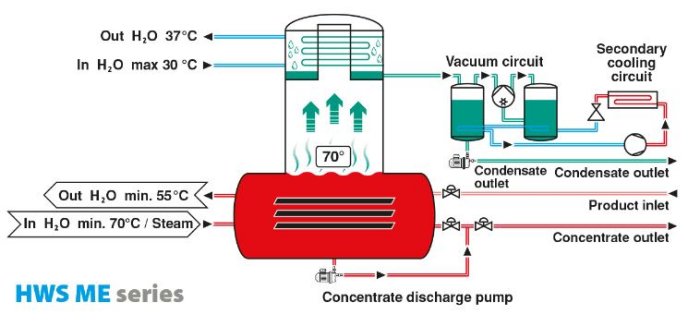

Evaporators fed by hot water or steam, in mono version, HWS ME series, with dipped plate heat exchangers. The HWS ME series of evaporators powered by thermal energy already available in the factory, in the form of hot water or steam, is a vacuum evaporation/concentration plant with plate heat exchangers placed directly inside the boiling boilers and immersed in the liquid to be treated. hese vacuum evaporators/concentrators use, for the condensation phase of the vapours, the cold water available in the company, usually coming from closed-circuit dry-coolers or evaporative towers, which can be supplied as a complement to the evaporation plant.
