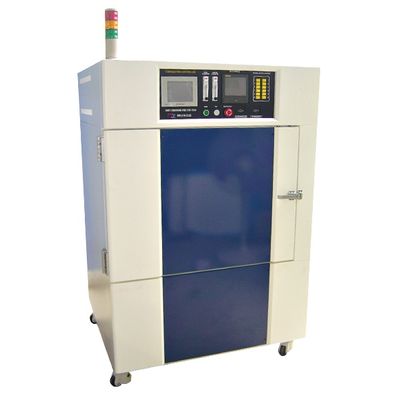

ETSP - Model TI Series -Inert Atmosphere Oven
FromETSP Co., Ltd.
ETSP-TI series are designed for protect parts from oxidation using any non-flammable gas such as Nitrogen, Argon or Carbon Dioxide. Solved temperature variations, unbalanced air distribution inside the oven.
Most popular related searches
oxygen analysis system
analysis system
chart recorder
water cooling
safety system
cooling system
oxygen analyzer
pressure gauge
digital temperature controller
blower
- Friendly, flexible, up-to date control and management systems.
- 304 stainless steel interior with carbon blower and plated hardware.
- Pressure gauge to indicate interior oven pressure.
- Horizontal air flow assures uniform thermal performance under all loading conditions.
- Adjustable flow rate: Purge inert flow rates (20~200 SCFH) / Main tain inert flow rates (10~100 SCFH)
- Allows easy servicing and upgrades.
- Water cooling unit is included for the cool down stage or for operating at lower temperatures.
- Computer control is available.
- Network connection of several chambers to a single "master" control unit allowing centralized supervision both in local and remote mode.
- Temperature range : 40 ℃ ~ 260 ℃ (changeable according to user`s demand)
- Temperature stability : Less than ± 0.5 ℃
- Temperature uniformity : Less than ±0.85% of the set point
- Heating rate : more than 6 ℃/min (RT~300 ℃ within 50 minutes)
- Airflow capacity : 300CFM
- Input power requirements : 230V/380V, 50Hz/60Hz, 1Ph/3Ph
- 2 shelves
- Auto Nitrogen
- End of cycle, Hi&low limit audible alarm
- Caster for moving
- Real time clock (Auto start)
- Chart recorder
- RS232/485 oven networking with control system
- Door lock system (including door switch)
- Port hole and rubber plug
- O2 analyzing system
- N2 detecting system
- T/C (Thermal couple) data acquisition (8, 16, 24, 32 Ch)
- Customization available
