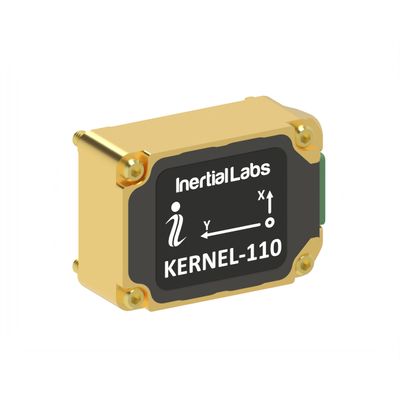

Inertial Labs - Model IMU-Kernel-110 -120 -Inertial Measurement Units Digital Tilt Sensors
The Inertial Labs MEMS KERNEL Inertial Measurement Units & Digital Tilt Sensors are the second generation of the Inertial Labs KERNEL Miniature MEMS sensor-based family. Revolutionary due to its very compact, self-contained strapdown, industrial-grade Inertial Measurement Systems that measures linear accelerations and angular rates with three-axis MEMS accelerometers and three-axis MEMS gyroscopes. Angular rates and accelerations are determined with low noise and very good repeatability for both motionless and dynamic applications.
The Inertial Labs KERNEL-110 and KERNEL-120 models are the breakthrough, fully integrated inertial solutions that combines the latest MEMS sensortechnologies. KERNEL-120 model utilizes two types of accelerometers: with ±40g and ±90g measurement ranges.
Fully calibrated, temperature compensated, mathematically aligned to an orthogonal coordinate system, the IMU contains up to 2 deg/hr Bias in-run stability gyroscopes and 0.01 mg Bias in-run stability accelerometers with very low noise and high reliability.
Continuous Built-in Test (BIT), configurable communications protocols and flexible input power requirements make the Inertial Labs KERNEL easy to use in a wide range of higher order integrated system applications.
The Inertial Labs KERNEL models were designed for applications, like:
- Autonomous vehicles
- Antenna and Line of Sight Stabilization Systems
- Passengers trains acceleration / deceleration and jerking systems
- Motion Reference Units (MRU) and Motion Control Sensors (MCS)
- Gimbals, EOC/IR, platforms orientation and stabilization ♦> GPS-Aided Inertial Navigation Systems (INS)
- Attitude and Heading Reference Systems (AHRS)
- UAV & AUV/ROV navigation and control
