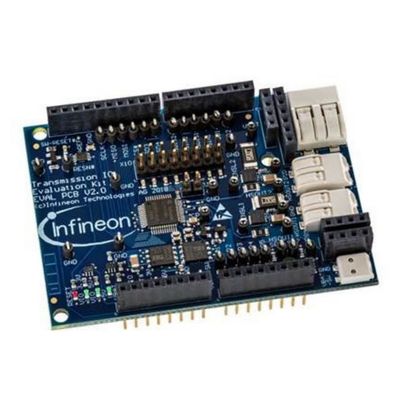

Infineon - Model TLE9241QU_DEV_BOARD -Evaluation Board
TLE9241QU evaluation board provides a quick pick and place solution for costumers` lab evaluations. The TLE9241QU can be used with any Arduino-compatible Microcontroller board such as XMC4700 Relax Kit
Most popular related searches
Summary of Features
Four input interfaces for two-wire Hall Effect position sensors
- Short to supply protection
- Overtemperature protection
- Sensor state status available by SPI
Four input interfaces for two-wire Hall Effect speed sensors
- Digital output for speed and direction sensing
- Further features set see position sensors above
Two high-side gate drive channels
- Short circuit protection
- Programmable overcurrent threshold
- Output state status available by SPI
A high-side gate drive channel for driving n-channel MOSFETs in anti-serial configuration
- Reverse polarity protected power switch
Integrated charge pump
- 16 bit SPI interface
- Green Product (RoHS-compliant)
- Compared to a discrete circuit solution
- ~40% less PCB area
- ~65% fewer components
- Automatic Transmission Control Modules
- Powertrain Control Modules
- Board Type Evaluation Board
- Dimensions Length: 73.57mm ; Width: 53.34 mm
- Family Transmission IO
- Input Type DC
- Interfaces ARDUINO form factor
- Product Description This evaluation board comes with 1 Transmission IO TLE9241QU. TLE9241QU evaluation board provides a quick pick and place solution for costumers` lab evaluations.
- Qualification Automotive
- Supply Voltage max 40.0 V
- Target Application Automotive
