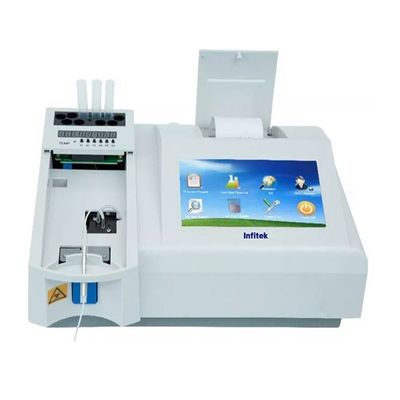

Infitek - Model BA-SA-100D -Semi-Auto Biochemistry Analyzer

• Memory for 10,000 sample results
• Adopt 5 inch color LCD touch screen;
• Wavelength precision:±2 nm, width≤ 10nm
• ARM series high speed micro CPU
• Built-in thermal sensitive printer
• 7 standard filters

• 5 inch color LCD; Touch screen
• Flow cell and cuvette test mode compatible
• Real time curve showing
• 5 wavelength , 80 test item pre-programmed
• Memory for 10,000 sample results
• Light source hibernate function making lamp life longer
• RS232 interface, PC connecting

Model: BA-SA-100D

• Test mode: Kinetic, End point, Two point, Absorbance
• Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position
• Wavelength precision: ±2 nm, width ≤ 10nm
• Absorbance range: 0~4.500 Abs
• Absorbance precision: Outside 0.0001 Abs , inside 0.00001 Abs
• Carry over: < 1%
• Repeatability CV: < 1%
• Incubator: 37℃、30℃、25℃
• Precision: ±0.1℃
• Sample volume: 0~3000 μL (≥500 μL recommend)
• Data Storage: ≥10000
• Quality control curve: 、SD、CV%、L-J quality control curve for every test item
• Flow cell: 32 μL quartz glass, 10 mm
• Lamp: Philips 6V 10W Halogen Lamp with long life
• Screen: 7 inch color LCD
• CPU: ARM series high speed micro CPU
• Printer: Built-in thermal sensitive printer
• Work environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%
• Electricity: 100~240VAC，50-60Hz，100VA
• Dimension(L*W*H): 360*270*180 mm
• Packing dimension (L*W*H): 500*460*290mm
• Weight: 5 kg
• Optional language: English; French; Spanish; Portuguese; Indonesian
• Usual test list:
  • Liver function: ALT  AST  ALP  T-BIL  D-BIL  TP  ALB  TTT  CHE  Nh3
  • Renal function : BUN  CRE  UA  URE  CO2-CP  γ-GT
  • Lipids: T-CHO  TG  HDL-C  LDL-C
  • Cardiac function: CK  CK-MB  LDH
  • Immune proteins: IGA  IGG  IGM  C3
  • Others: GLU  HGB  AMS
