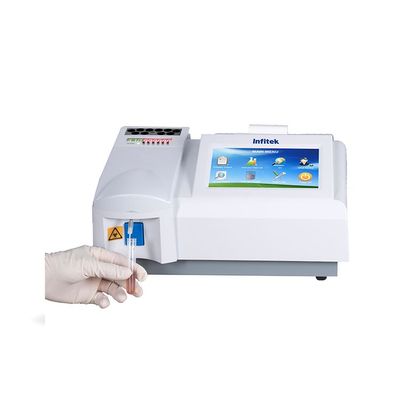

Infitek - Model BA-SA-100Vet -Veterinary Semi Auto Biochemistry Analyzer

• Sample Volume:0-3000μL(≥500μLrecommended)
• Flow Cell:32μL quartz glass
• Test Mode:Kinetic, End point, Two point, Absorbance

• Animal Type: cat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep, user-defined settings.
• 7-inch color LCDtouch screen.
• Flow cell and cuvette test mode compatible.
• Real time curve showing.
• 7 wavelength , 90 test item pre-programmed.
• Memory for 10,000 sample results.
• The light source hibernationfunction makes the lamp life longer.
• RS232 interface, PC connecting.
• 10 incubator positions and 3 timers.

Model: BA-SA-100Vet

• Test Mode: Kinetic, End point, Two point, Absorbance
• Sample Volume: 0-3000μL(≥500μL recommended)
• Flow Cell: 32μL quartz glass
• Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630nm, 1free position wavelength
• Precision: ±2nm, width<10nm
• Absorbance Range: 0-4.500 Abs
• Absorbance Precision: Outside 0.0001 Abs , inside 0.00001 Abs carry over: < 1%
• Repeatability CV: <1%
• Data Storage: ≥10000
• Quality Control Curve: `X SD CV% L-J quality control curve for every test item
• Lamp: Philips 6V 10W Halogen lamp with long life
• CPU: ARM series high speed micro CPU
• Printer: Internal thermal sensitive printer
• Interface: RS-232
• Work Environment: Temperature:0℃~40℃, Humidity: 80%
• Electricity: 100-240VAC, 50-60Hz, 100VA
• Dimension(L*W*H): 340*270*160mm
• NW./G.W.: 5kg/8kg
• Shipping Dimension(L*W*H): 500*460*300mm

• Liver function: ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
• Renal function: BUN CRE UA URE CO2-CP  γ－GT
• Lipids: T-CHO TG HDL-C LDL-C
• Cardiac function: CK CK-MB LDH
• Immune proteins: IGA IGG IGM C3
• Others: GLU HGB AMS
