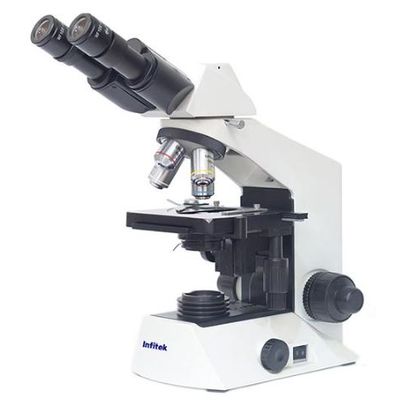

Infitek - Model MSC-B201 -Biological Microscope

SHARE

Viewing Head: binocular head inclined at 30°IncIined. Eyepiece: Wide Field Eyepiece WF10X18mm, *WF16×; *WF20×*WF10X22mm. Achromatic Objective: 4X,10X,40X,100X. 3W LED Illumination, Brightness Adjustable.

Most popular related searches
biological microscope
microscopy

Specification: MSC-B201

  • Viewing Head: Compensation free binocular head inclined at 30°IncIined  Interpupillary (55-75mm)
  • Eyepiece: Wide Field Eyepiece WF10X18mm ，*WF16×；*WF20×*WF10X22mm
  • Nosepiece: Quadruple Nosepiece
  • Objective: Achromatic Objective 4X,10X,40X,100X
  • Stage: Double Layers Mechanical Stage 140X135mm/ 75X50mm
  • Condense: Abbe NA1.2５ with Iris Diaphragm & Filter
  • Focusing System: Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm
  • Illumination: 3W LED Illumination, Brightness Adjustable
  • Halogen Lamp 100V-240V/ 6V20W
  • Plan-concave Mirror
  • Package: Carton
  • Filter: White Filter
  • Package Size W*D*H(mm): 370*260*460
  • Gross Weight (kg): 8
