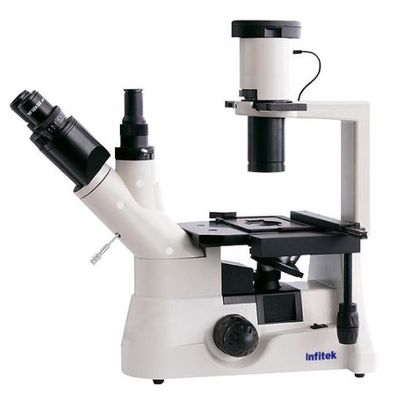

Infitek - Model MSC-IV403 -Inverted Microscope

• Model: MSC-IV403
• Viewing head: Trinocular Head Inclined at 45°, Interpupillary Distance 50-75mm
• Eyepiece: WF10X/ 20mm
• Objective: LWD Plan ObjectiveLWDPL4X\10X\20X\40X
• Stage: Double layers mechanical stage，Stage size: 242mmx 172mm，Central stage: Φ110mm，Moving range: 75mm × 50mm
• Condenser: N.A.0.3Abbe condenser W.D .75mm
• Focusing: Coaxial coarse&fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm
• Phase contrast sliding plate: Center of phase contrast ring plate adjustable
• Centering telescope: Centering telescope
• Filter: Blue,green, yellow and froster glass
• Light source: Halogen bulb12V/30W,Adjustable brightness
• *Fluorescence attachment: B.GWave band ,220V(110V)/100W Mercury lamp
• *Optional: Photograph connecting tube,adapter with MD or PK mount ,4X photograph eyepiece
• Packaging Size(mm): 760*310*170
• Net/ Gross Weight(kg): 12/ 13

*Optional configuration
