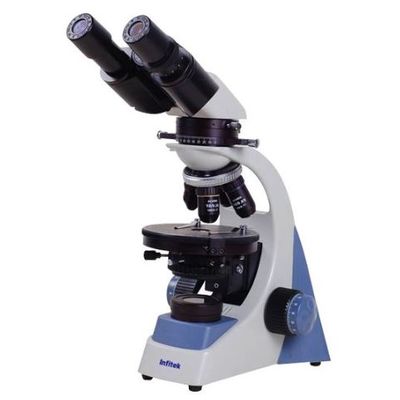

Infitek - Model MSC-P1 -Polarizing/ Petrographic Microscope, Binocular
Viewing Head: Seidentopf binocular head inclined at 30°, Interpupillary 55-75mm. Eyepiece: WF10X18mm. Achromatic objective: 4X?10X?40X(s)?100X(s, o). It has important applications in science and engineering majors such as geology.
Most popular related searches
- Model: MSC-P1
- Viewing Head: Seidentopf binocular head inclined at 30°， Interpupillary 55-75mm
- Eyepiece: WF10X18mm
- Objective: Achromatic objective：4X、10X、40X(s)、100X(s，o)
- Nosepiece: Quadruple nosepiece
- Analyzer: Rotatable analyzer with gradation 0°-90°； Sliding in/out of the optical path
- Optical Compensator: λSlip(Firstclass red) ；1/4λSlip
- Revolving RoundStage: Diameter p160mm， 360°Rotatable and graduate in 1°Increments， Minimum resolution 6’whenusing venire scale， Center adjustable
- Condenser: Abbe Condenser NA 1.25 with Iris diaphragm&filter
- Focusing: Coaxial coarse&fine adjustment， range 14mm， fine division 0.01
- Polarizer: 360°Rotatable located
- Illumination: 1WLED， Brightness adjustable
