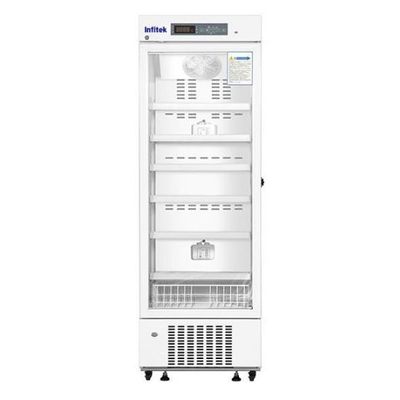

Infitek - Model PR5-315 -Single Door Laboratory Refrigerator

• Capacity: 316L
• Temperature range(℃）: 2~8℃
• Cooling method: Forced Air Cooling System
• Defrost: Auto
• Refrigerant: R290
• Sensor Type: NTC
• Temperature controller: Microprocessor

• High efficiency specially compressor with known field proven reliability.
• Permanently lubricated cooling fan for safety and longevity.
• Forced-air cooling with optimized air distribution system designed.
• To achieve maximum temperature uniformity and stability.
• Optimized refrigeration system design for more effective cooling and speedy recovery.
• Temperature variation within ±3℃.
• Adjustable temperature range 2-8℃.
• Microprocessor control digital display, and temperature adjustment with an increment of 0.1℃.
• Large digital display screen.

• Safety door lock design to avoid door ajar.
• Big digital screen display for easy observation.
• Optional testing hole.
• Adjustable shelves.
• Inner light design for a clear display.

• Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
• Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.

Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to ensure no-frost inside.

• Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
• Safety lock to prevent unauthorized access.
• Caster design and leveling legs LED interior light.

Specifications:

• Model: PR5-315
• Shelf/drawer: Shelves*6/Basket*1
• Cooling method: Forced Air Cooling System
• Defrost: Auto
• Refrigerant: R290
• Power consumption(kWh/24h): 3.8
• Noise(db): 50
• Ambient temperature(℃）: 10~32℃
• Temperature range(℃）: 2~8℃

Cooling system:

• Compressor brand/QTY: China Brand/1
• Sensor Type: NTC
• Temperature controller: Microprocessor
• Display: Digital display

Power:

• Voltage/frequency（V/Hz): 220/50Hz
• Power(W): 294W
• Current(A): 1.63A

Material:

• Inside material: Color sprayed steel
• Outside material: Color sprayed steel
• Insulation: PURF

Size:

• Capacity(L/cu.ft): 316/11.15
• NW./GW.(kg): 92.5/100
• Exterior size(W×D×H)(mm): 660×554×1925
• Interior size(W×D×H)(mm): 540×425×1380
• Package size(W×D×H)(mm): 710×680×1960
• CBM: 0.9
• 20GP/40GP/40HQ: 27/54/54

Alarm:

• High/low temperature: Y
• Power failure: Y
• Thermostat failure: Y
• Backup battery failure alarm: Y
• Condenser fault alarm: Y
• Ambient Temperatures: Y
• Voltage abnormality alarm: /
• Door ajar: Y
• System abnormal alarm: /
• Power failure backup system(alarm): 72h

Accessories:

• Foot: Y
• Castor: Y
• Outer door/Type: 1/Heating glass door with automatic rebound
• Door Lock: 1
• Test hole QTY/diameter: 1/25mm
• Lamp: LED
• USB port: Y
• Temperature recorder: Optional  Datalooger
• Remote alarm port: Y
• RS232/485 port: Y
