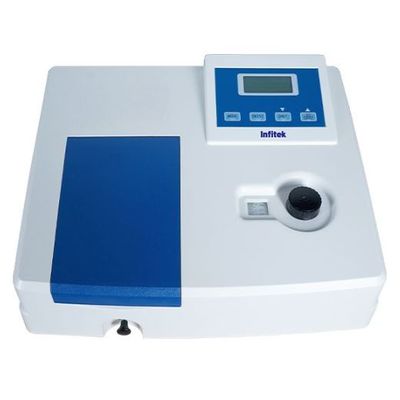

Infitek - Model SP-IUV752G -Single Beam UV-Vis Spectrophotometer

UV-Vis Spectrophotometer adopt silicon photocell detector, automatic zero and full scale adjustment

• Wavelength Range: 200-1000nm
• Wavelength Accuracy: ±2nm

G series economic UV-Vis Spectrophotometer been widely used in colleges and enterprises for general quantitative analysis and experiments based in absorbance measurements.

1. High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high quality accuracy and precision.
2. Backlit LCD display for an easy readout.
3. Automatic 0A and 100%T.
4. Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.
5. Direct concentration read-out and concentration factor setting function.
6. Large sample compartment, for 5 – 100mm path length cuvettes with optional holders.
7. Easy to change the halogen lamp or deuterium lamp by the user himself.

• Model: SP-IUV752G
• Photometry: Single Beam
• Monochromator Type: Czerny-Turner
• Detector: Silicon Photocell
• Wavelength Setting: Manual Turn Knob
• Wavelength Range: 200-1000nm
• Wavelength Accuracy: ±2nm
• Wavelength Repeatability: ≤1nm
• Spectrum Bandwidth: 4nm
• Stray Light: ≤0.3%T (at 220nm NaI, 360nm NaNo2)
• Photometric Range:
  • 0-100.0%T
  • 0-1.999A
  • 0-1999C
• Photometric Accuracy: ±0.5%T
• Photometric Repeatability: ≤0.2%T
• Noise: 100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T)
• Drifting: ±0.5 %T/3min
• Cuvette Holder Size: 50mm
• Power: AC220V±22V 50Hz±1Hz, 130W
• Packaging Size: 560mm×490mm×285mm 0.08M³
• G.W.: 16kg

Standard Accessories

• User manual 1pc
• Glass cuvette 1cm 4pcs (SP-IV721G/SP-IV721G-100/SP-IV722G only)
• Quartz cuvette 1cm 2pcs
• Power cable 1pc
• Fuse 2pcs

Optional Accessories

• 50mm cuvette holder
• Cuvette holder 100mm (721G-100 only)
