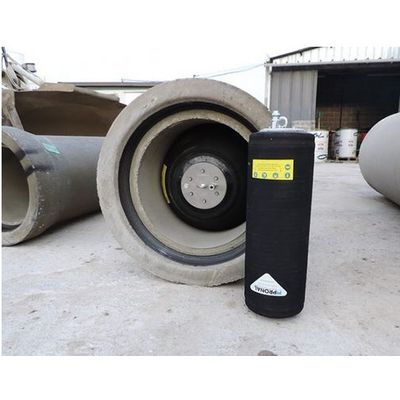

Pronal - Model OPL -Inflatable Pneumatic Stoppers
Inflatable OPL stoppers, or pipe bladders, are designed to temporarily plug all types of pipes: concrete, steel, cast iron … They can be used in a wide range of contexts thanks to their varied diameters, including sanitation, rainwater, or waste-water systems, hydrocarbon and/or chemical pipelines.
The use of these inflatable stoppers means that the following operations can be performed in complete safety:
- pipe repairs,
- pipeline maintenance,
- flow deviations,
- air or water-tightness testing, in accordance with the NF-EN1610 Standard,
- hydraulic testing.
These pneumatic stoppers are available in standard or by-pass versions.
Our inflatable stoppers meet our demanding in-house safety criteria thanks to their construction employing high-quality materials. Pronal is well aware of the risks that may be incurred by the use of inflatable stoppers; as such, priority is placed on the quality and performance of these products. Consequently, the OPL range has been designed to withstand a burst pressure safety coefficient of at least 3. The rubber that is used for these products also provides excellent abrasion and slip protection. Choosing the OPL range is a guarantee of working with a powerful, reliable, and highly durable product!
Detailed information
- Material: SBR rubber
- Technique: vulcanisation
- Length: 150 > 2750 mm
- Max. diameter: 60 > 2000 mm
- Inflation: by air
- Temperature resistance: -20 to +60°C (please contact us for any use outside of this temperature range)
- Inflation pressure: max. 3 bar
- Back-pressure: download the OPL product sheet below
- Optional materials: thermal protection
- Plugging for air or water tightness testing in accordance with the NF-EN1610
- Plugging for isolating the pipeline during maintenance operations
- Plugging for deviating flows
- Plugging for pipeline repair
- High pressure and back-pressure
- Total water and air tightness
- High quality materials
- Excellent back-pressure resistance
- Safety coefficient of at least 3
- Highly scratch-resistant
- Easy installation
