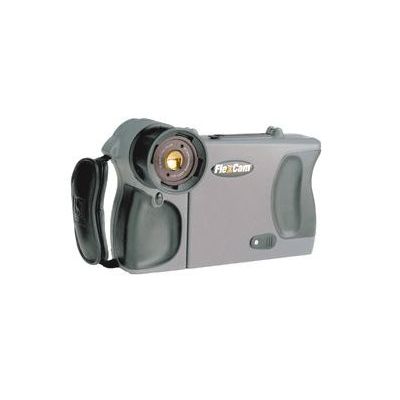

Fluke FlexCam - Model IR -Infrared Camera
The new IR FlexCam is a fully radiometric, portable, video rate infrared camera that combines unprecedented ease of use with advanced functionality. It`s a combination that makes for a powerful, revolutionary infrared camera, capable of instantly detecting and pinpointing electrical, mechanical and other condition based problems. The FlexCam features a rugged, lightweight and ergonomic design. The unique 180° articulating lens joint and the 5` image display allows the user to easily rotate the camera lens and facilitates a clear and detailed view while scanning awkwardly positioned targets. TheFlexView companion software expedites downloading and provides comprehensive post-image analysis and report generation capabilities
Most popular related searches
infrared camera
temperature monitoring
thermal imaging
process monitoring
non-contact temperature monitoring
contact temperature monitoring
emissions target
automatic monitoring
band screen
- The IR FlexCam is a fully-radiometric, portable, video rate infrared camera with outstanding image quality.
- The Sharper Simpler Smarter™ design features combine unprecedented ease of use with a rich set of functionality.
- Focal Plane Array (FPA)
- Uncooled Microbolometer
- Field of view : 23° Horizontal x 17° Vertical
- Temperature Range : 0°C to 350°C
- 5-inch high resolution
- Sunlight readable colour LCD
- Eight different colour palettes
- 180-degree articulating lens joint
- Intuitive operation with on-camera Windows
- Highly sensitive detector
- FlexView companion software package
- Precise non-contact full-screen temperature measurement
- Programmable buttons
- Predictive Maintenance Identifying and fixing electrical and mechanical problems can reduce downtime, prevent disastrous failures and save time, lives and money.
- Quality control Examining prototypes and parts for potential heat related design deficiencies enables companies to release better and more durable products to the market.
- Process Monitoring Monitoring and observing temperatures of processes in real-time can save time and money by ensuring that they are operating safely and efficiently.
- Research and Development Visualizing and quantifying the heat patterns generated enables engineers to imporove their product as well as the processes used to create it.
- Detector : Focal Plane Array (FPA), Uncooled MicrobolometerFlexView Main Screen
- Spectral Band : 8µm to 12 µm
- Thermal Sensivity at 30Hz : <0,1°C at 30°C
- Focusing : Manual
- Electronic Zoom : 2x
- Digital Image Enhancement : Automatic Full-time Enhanced
- Digital Display : 5 inch high-resolution, 320 x 240, sunlight readable colour LCD
- On-screen Indicators : Indicate status of battery, target emissivity, background temperature and real-time clock
- Palettes : 8 unique palettes available
- Storage Medium : 16MB Compact Flash Card (stores 300 images). Larger capacity cards available
- Text Annotation of Images : User definable, automatically included in reports
- Temperature Range : 0°C to 350°C (32°F to 662°F). Optional higher ranges available.
- Accuracy : ±2°C or ±2%
- Measurement Modes : Center point, center box/full-image area min/max, average, movable spot, automatic hot and cold point detection, isotherm, color alarm above and below
- Emissivity Correction : Based on user input. Variable from 0,1 to 1,0
- Measurement Correction : Automatic, based on user input for background temperature and optics
- Standard Optics : 20 mm f/0,8 Germanium.
- Field of view : 23° Horizontal x 17° Vertical
- Spatial Resolution (IFOV) : 2,6 mrad IFOV, 0,15 mininmum focus
- Battery Type : Li-Ion Smart Battery, rechargeable, field-replaceable
- Battery Operating Time : 2+ hours continuous operation
- Battery Charging : 2 bay intelligent charger powered via AC outlet or 12V from car (optional)
- AC Operation : AC adapter 110/220 VAC, 50/60 Hz
- Power Saving : Automatic shutdown and sleep mode (user specified)
- Video Output : RS170 EIA/NTSC or CCIR/PAL composite video
- USB : USB peripheral devices (mouse, etc.)
- Weight : 1,95 kg including battery
- Size : 69 mm x 262 mm x 162 mm camera only
- Tripod Mounting : 1/4" - 20 UNC
- Operating Temperature : -10°C to +50°C
- Storage Temperature : -40°C to +70°C
- Humidity : Operating and storage 10% to 95%, non-condensing
- Encapsulation : Designed for IP54
