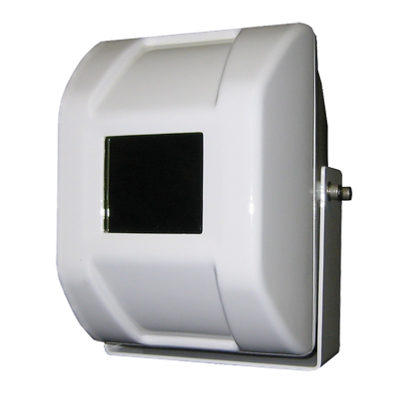

Intec - Model VSC618 -Infrared Camera
High Performance BST Technology 320 x 240 pixels provide excellent infrared image quality. All Weather Operation - environmentally sealed housing and heater standard. Compatible with INTEC VSX361 Series Controllers and all color CVD and VSM Monitors. Optional RF Transmission enables the ultimate in viewing flexibility.
Most popular related searches
Material & Structure
- BST Uncooled Ferroelectric
- 320 (H) x 240 (V)
Spectral Response
- 7-14 µm (filter bandwidth)
Thermal Sensitivity
- ≤ 100 mK
Time to Image
- < 30 sec (Typical)
Contrast/Brightness
- Auto or Manual / Gain and Level
Polarity
- Black Hot / White Hot
Lens
- 18mm F1.0
Range to Detect Human Activity
- Up to 700 Feet
Field of View
- Horizontal: 45° Vertical: 35°
Focus
- Motorized
Minimum Focus Distance
- ~ 10 ft.
Video Signal
- NTSC Composite Video UPT
Operating Temperatures (C)
- -30 to +66 Deg
- -20 to +66 Deg for Motorized Focus Only
Storage Temperature (C)
- -40 to +80 Deg
Environment
- All Weather
Construction
- Cast and Machined 356 T51 Al Alloy
Finish
- Polyurethane Paint - Cardinal White
Weight
- 7.2 lbs.
Input Voltage
- 9 to 28 VDC from the VSX361
Input Power
- < 7A Peak (Start Up), < 1A (Steady State)
