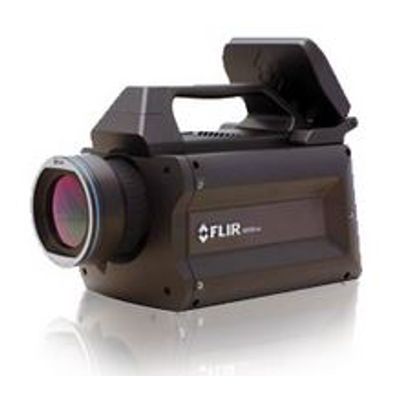

AT Automation - Model FLIR X8400sc -Infrared Camera with High Sensitivity
The FLIR X8400sc thermal imaging camera is designed to provide the best thermal measurement performance together with the most advanced connectivity. The IR camera means an ideal solution for R&D and NDT applications. State-of-the-art connectivity and ease of use allow the user to concentrate on the measurements and not on the camera.
Most popular related searches
infrared camera
thermal imaging camera
FLIR thermal imaging camera
thermal imaging
infrared camera system
cooled camera
FLIR camera
thermal camera
non-destructive testing
- Resolution: 1280 x 1024 Pixels
- Frame Rate: 106Hz (Full-Frame Mode)
- Thermal Sensitivity: < 25 mK (20 mK normal)
- Detector: Indium-Antimonid (InSb)
- Spectral Range: 1,5 – 5,1 µm
- Optics: 28mm – 38° x 31° / 50mm – 22° x 17°
- 100mm – 11° x 9° / 200mm – 5.5° x 4.4°
- Close up x3 – 6.4 x 5.1 mm
- Filtering: 4 x Position Motorized, with drift compensation and automatic identification
- Sensor Cooling: Closed Cycle Rotary
- HD Video: DVI 1080p
- Command and Control: Gigabit Ethernet, Camera Link, Detachable LCD Display, WiFi
- On-Camera Display: Detachable Touchscreen LCD Display (800 x 480)
- Power Supply: 24 VDC
- Weight: 5,05 kg
- Size: 280 x 150 x 180 mm
- HD Thermal Imging with High Sensitivity
Cooled Indium Antimonide detector with 1280 x 1024 pixels and themal sensitivity of < 25mk - Ultra High Frame Rate with Windowing
106 Hz (with 1280 x 1024 pixels) up to 3000 Hz (with 1280 x 8 pixels) - Very flexible Connectivity
Camera Link, Gigabit Ethernet, BNC, DVI, etc.
