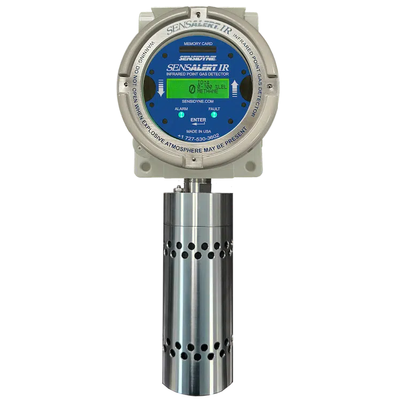

Sensidyne -Â Model SensAlert IR -Infrared Gas Detector
The fixed point Non-Dispersive Infrared (NDIR) LEL detector is designed for performance in harsh and hazardous Hydrocarbon gas environments. Utilizing solid-state infrared technology, this detector delivers dependable hydrocarbon gas detection with minimal maintenance requirements. The expected life is 10 years, and we offer a 5 year warranty.
-
High Reliability and Durability
The SensAlert IR has a straight-forward design and rugged 316 stainless steel sensor construction to withstand the most demanding applications. -
Dual Wavelength NDIR Technology
The sensing and reference elements are self-compensating for optical integrity
and other signal inhibitors. -
Operates in Anaerobic Atmospheres and Constant Hydrocarbon Background
The self-contained optics fully function in applications where there is no oxygen or hydrocarbons are regularly present. The SensAlert IR optics are also immune to poisoning and etching. -
Dual Infrared Sensors and Remote Mount Capability
One or two infrared sensors can be mounted locally or remotely up to 250 feet / 76 meters away from the transmitter. -
No Routine Calibration and Virtually Maintenance Free
There is no scheduled calibration programs required for the operation of this instrument and required maintenance is limited to zeroing. -
3-Wire 4-20 mA Linear Output
Detectors can be installed in new construction or retrofits using using 3-wires. Detectors communicate faults and special functions using signals below 4 mA.
- Reduced Downtime: Minimal maintenance requirements ensure continuous operation and minimize downtime for calibration.
- Enhanced Safety: Reliable detection of combustible hydrocarbons safeguards personnel and assets in hazardous environments.
- Cost-Effective Operation: The extended lifespan and reduced maintenance needs contribute to a lower total cost of ownership.
- Versatility: The SensAlert IR detector is suitable for a wide range of industrial applications.
- Fire & Gas Applications
- Drilling
- Production
- FPSO (Floating Production, Storage, and Offloading)
- Oil Refining
- Gas Processing
- LNG/LPG Processing
- Loading Racks
- Compressor Stations
- Gas Turbines
- Chemical Plants
- Waste Treatment
