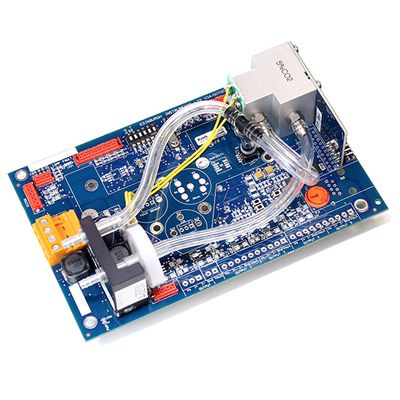

Edinburgh Sensors Gascard - Model NG -Infrared Gas Sensor for CO, CO2, and CH4 Detection

The Gascard NG infrared gas sensor is engineered to seamlessly integrate with a variety of gas detection systems, delivering accurate and reliable measurements of carbon monoxide (CO), carbon dioxide (CO2), and methane (CH4) gas concentrations. Designed for sequential single-gas measurement, it features real-time corrections for temperature and atmospheric pressure through built-in sensors. This device supports true RS232 communication, offering robust data logging and control capabilities, and can optionally use TCP/IP protocol for enhanced communication flexibility. With an operating voltage range from 7V to 30V, the sensor includes on-board barometric pressure correction from 800mbar to 1150mbar and extensive temperature compensation, ensuring high precision across diverse environments. The sensor's adaptability allows for the integration of additional gas detection technologies, making it suitable for varied applications requiring precise gas analysis.
