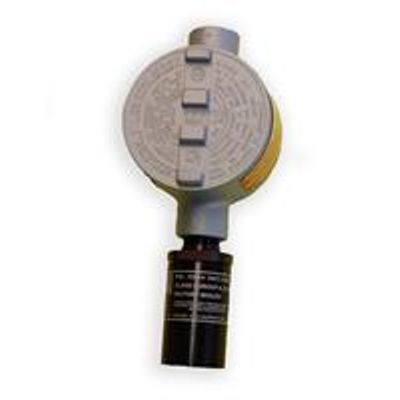

AMC - Model 360-IREP -Infrared Sensor/Transmitter
The AMC-360-IREP is available in versions to sense combustible gases or carbon dioxide, and it brings together the specificity and exceptional service life of infrared sensing technology with the reliability of our 360 series transmitter at a competitive price. For combustibles gas applications the AMC-360-IREP presents an excellent alternative to traditional catalytic sensor/transmitters over the life of the product. The AMC-360-IREP works with all AMC monitors, and many 3rd party control systems.
Most popular related searches
NDIR hydrocarbons
condensate sensor
infrared sensor
NDIR
gas detection
methane detection system
methane detection
- Detectable Gas: Methane, Propane, Butane, Ethane, Hexane, Ethylene, Pentane, and many other Hydrocarbons, Carbon Dioxide
- Range (HCJ: 0-100% LEL (some 0-100% Vol. available)
- Range (COa): Ranges from 0-500ppm up to 0-100% Vol
- Signal Output: 4-20 mA
- Sensor Type: Non-Dispersive Infrared (NDIR)
- Enclosure: Explosion Proof Class 1, Div 1 Groups BCD
- Voltage Requirement: 12-26 VDC
- Installation Wiring: Three conductor shielded cable
- Resolution: 1% of full scale
- Response Time: 90% response in less than 30 seconds
- Operating Temperature: -20°C to +50°C continuous
- Operating Humidity: 0-95% R.H. Non Condensing
- Sensor Life Expectancy: Greater than 5 years
- Approvals : Sensor Housing CSA/CSA USA CI 1 Dlv 1 ABCD Trx Housing As identified below
