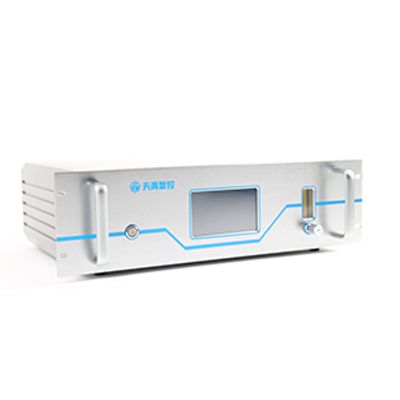

Tianyu - Model SF6 -Infrared SF6 Gas Analyzer
For testing SF6 electrical equipment, such as: GIS circuit breakers, GIS combination appliances, SF6 transformers or insulation substations. Measure the purity, humidity, and other gas decomposition products of SF6 gas in the equipment gas chamber, perform pre-diagnosis based on test data, understand the equipment operating conditions, avoid the occurrence of latent faults, and save maintenance costs. Analyze the faulty equipment according to the test data to find the fault point.
Most popular related searches
gas analyzer
SF6 gas
online gas analyzer
gas emissions monitoring
SF6 gas analyzer
SF6
cement industry
gas emissions
emissions monitoring
H2S
- Sulfur hexafluoride fast gas analyzer uses advanced infrared absorption technology NDIR
- can detect multi-component gas, up to 8 kinds of gas, can also be configured according to user needs
- With automatic pump-back function, the user can choose whether to return the measured gas pump to the circuit breaker.
- With pipeline vacuum dehumidification function, make the test data more real and accurate
- Optional 3 measurement cycles, each cycle takes only 1 minute to complete
- automatic sampling, continuous measurement of 3 cycles
- Accurate and precise: bring laboratory-level instruments to the scene
- Sulfur hexafluoride fast gas analyzer optional leak detection function according to user needs
- Add CMS online detection function according to user needs
- SF6 (purity) range: 0-100%
- Error: ≤ ± 0.1% (90 ~ 100%)
- H20 (micro water) range: -20 ? ~ -60 ?
- Error: ≤ ± 0.5 ?
- SO2 (sulfur dioxide) Range
- 0-150 / 500ppm (Dual range automatic switching)
- Measurement value ≤10ppm, error ≤ ± 0.4ppm
- Measurement value ≥10ppm, error ≤ ± 2%
- H2S (hydrogen sulfide) Range
- 0-100ppm
- Measurement value ≤10ppm, error ≤ ± 0.5ppm
- Measurement value ≥10ppm, error ≤ ± 5%
- CO (carbon monoxide) range
- 0-1000ppm
- Measurement value ≤50ppm, error ≤ ± 5ppm
- Measurement value ≥50ppm, error ≤ ± 5%
- HF (hydrogen fluoride) Range
- 0-200ppm
- Error: ± 5% FS
- CF4 (carbon tetrafluoride) range: 0 -4000ppm error: ± 2% FS
- Range: 0-65% Error: ± 1% FS
- Air range: 0-50% Error: ± 1% FS
Products are widely used in tail gas emission monitoring and process control of coal-fired power plants, garbage power plants, cement plants, glass plants, lime plants, ceramics plants, sintering, coke ovens, desulfurization processes, and denitration processes.
