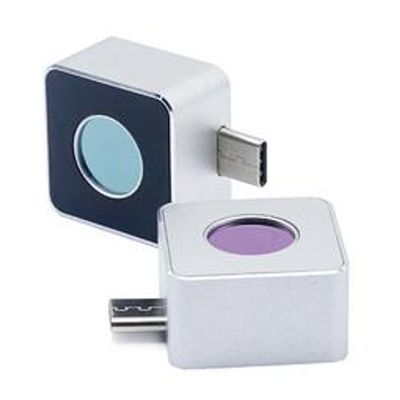

Dianyang - Model H2F -Infrared Thermal Camera

H2F mobile phone infrared thermal imager is a portable infrared thermal imaging analyzer with high precision and quick response, which adopts an industrial-grade infrared detector with small pixel spacing and high resolution ratio, and is equipped with a 3.2mm lens. The product is lightweight and portable, plug and play. With the customized professional thermal image analysis Android APP, it can be connected to a mobile phone to carry out infrared imaging of the target object, making it possible to perform multi-mode professional thermal image analysis anytime and anywhere.

• It is lightweight and portable, and can be used with Android APP to perform professional thermal imaging analysis anytime and anywhere;
• It has a wide temperature measurement range: -15? - 450?;
• It supports high temperature alarm and customized alarm threshold;
• It supports high and low temperature tracking;
• It supports points, lines and rectangular boxes for regional temperature measurement

• Night vision
• Prevent peeping
• Power line failure detection
• Device defect detection
• Printed circuit board troubleshooting
• HVAC repair
• Car repair
• Pipeline leakage

Infrared thermal imaging

• Resolution: 256x192
• Wavelength: 8-14 μm
• Frame rate: 25Hz
• NETD: <50mK @25?
• FOV: 56°* 42°
• Lens: 3.2mm
• Temperature measurement range: -15?~450?
• Temperature measurement accuracy: ± 2 ° C or ± 2% of reading
• Temperature measurement: The measurement of temperature of the highest, lowest and center points of the whole screen and regional temperature measurement are supported
• Color palette: 6

General items

• Language: Chinese and English
• Working temperature: -10°C - 75°C
• Storage temperature: -45°C - 85°C
• Waterproofing and dustproofing: IP54
• Product dimension: 34mm x 26.5mm x 15mm
• Net weight
