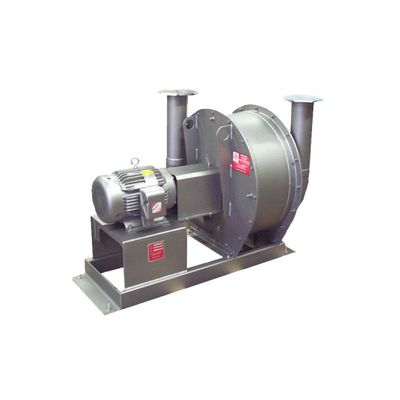

National Turbine - Model M24B Series -Inlet Drive Blowers And Exhausters

Number of Stages : 1 through 6. Inlet Connection : 5" Tube or ANSI Flange. Outlet Connection : 5" ANSI Flange. Operating Speed : 3525 RPM. Maximum Casing Pressure : 15 PSIG. Bearings : Ball, self—aligning, flange mount, Life per ABMA B-10 standard Grease. Lubrication : Grease. Impeller Diameter : 19" (483mm). Impeller Tip Speed : 18,534 FPM (5344m/min). Drive : Direct coupled (belt drive available). Drive Shaft Diameter : 1.63" at coupling (41mm). Impeller Balance : Individually dynamically balanced to ISO Standards.
