ESC Europa-Siebdruckmaschinen-Centrum GmbH & Co.KG

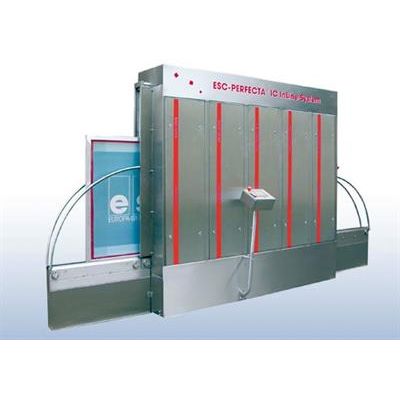

Esc-Perfecta - Model IC -Inline Continuous-Flow System
Washing and reclaiming of screens to ultimate perfection - all in a length of 2500 mm! The ESC InLine system has been engineered to meet our customers’ requirements.
Most popular related searches
flash point
vacuum distillation
filter integrity
washing system
cleaning nozzle
scan sensor
sensor system
decantation
decanter
chemical screening
- innovation:
- module length is reduced to 500 mm
- innovation:
- pen stock system with only one drive, to conserve the mechanical system and to ensure a smooth and fast cleaning
- innovation:
- pre-selectable nozzle bar operating height via touch screen for various screen sizes, offering savings of time, chemicals and energy
- innovation:
- screen washing module with integrated inclined filter system
- innovation:
- sealing structure in the screen washing and reclaiming module made of special solvent-resistant material
- laid out for solvents with a flash point > 55°C
- compact stainless steel construction (1.4301) with smooth surface
- innovation:modules reduced to 500 mm in length
- innovation:nozzle bar with one drive only for careful handling of engineering mechanics to ensure smooth and fast cleaning
- innovation:pre-selectable nozzle bar operating height via touch screen for various screen sizes, offering savings of time, chemicals and energy
- innovation:sealing structure in the screen washing and reclaiming module made of stainless steel lamellas
- selectable feed rates from 0.1 m/min. up to 0.6 m/min.
- easy assembly and speedy set-up
- compliance with CE directives
- feeding station (basic version)
- automatic screen feed station
- ESC-PERFECTA® IC ROBOT (upgrade)
- screen washing module with integrated inclined filter system (basic version)
- 100 l solvent tank (basic version)
- dripping module (basic version)
- rinsing module (upgrade)
- drying module (upgrade)
- high-pressure module I
- screen reclaiming module with integrated development (basic version)
- high-pressure module II
- screen developing module
- drying module (upgrade)
- unloading station (basic version)
- automatic screen removal station
- ESC-PERFECTA® IC ROBOT (upgrade)
- screen washing module ready-to-connect to the ESC-PERFECTA® IC vacuum
- distillation unit respectively to the separate ESC IC solvent filter system with integrated decanter for mechanical sedimentation
- automatic screen move-in - start of nozzle bar system
- sensor scanning to determine the screen’s outer edge
- edge extraction system at the inlet (outlet nozzle: Ø 125 x 40 mm, volume flow: max. 1160 m³)
- start of screen washing program using screen detergents
- dripping
- rinsing (according to configuration)
- removal of solvent residues in high-pressure module I
- screen reclaiming
- rinsing in high-pressure module II
- drying (according to configuration)
- screen is moving towards the unloading station
