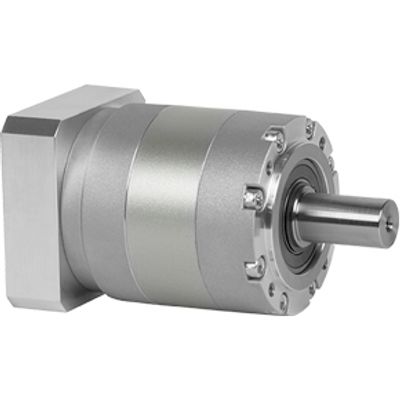

NIDEC-SHIMPO - Model PRE 062 Frame -Inline Helical Planetary Economy Class Gearboxe
PRE 062 is part of the latest generation economy product family from Nidec Drive Technology Corporation. The PRE 062 redefines the economy planetary gearbox segment by featuring helical cut gearing and a robust internal structure. Our customers benefit from a cost-effective, flexible, reliable design that can be adapted into a wide range of servo and stepper motor axes.
Most popular related searches
- Carburized helical gears for higher accuracy and smooth, quiet operation
- Uncaged needle roller bearings provide excellent torque density and torsional rigidity
- Unique labyrinth input design greatly reduces heat and increases system efficiency
- Optimized mounting system with active centering on motor pilot diameter guarantees alignment of motor. Motor can be installed in any orientation
- True concentric motor shaft clamping connection, optimized for your specific motor. Reduced inertia for dynamic performance and balanced for high speed operation
- Ring gear machined directly into the housing, not welded or pressed in. Provides greater concentricity and elimination of speed fluctuation
