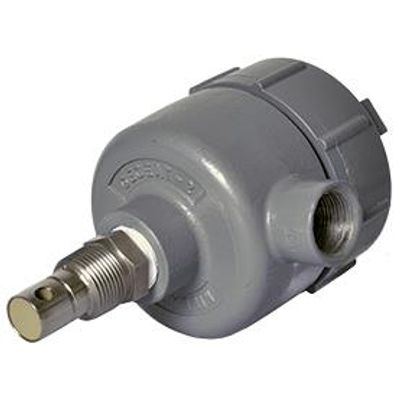

Barben Analytical - Model CS41 -Inline High Pressure / High Temperature Sensors

• Broad range of cell constants 0.05 / 0.1 / 1.0 / 2.0
• Ratings from 250PSIG @ 205oC to 500PSIG @ 100oC
• 316 Stainless Electrodes, PEEK insulator
• 3/4 inch Male NPT process connection
• Optional Explosion-proof junction box

The CS41 Two Electrode Conductivity Sensor is specifically designed to handle the high pressure requirements found in boiler water measurement. It uses a rugged, explosion proof junction box with a high temp terminal strip for internal wiring.

• Broad range of cell constants 0.05/0.1/1.0/2.0
• Ratings from 250PSIG @ 205^oC to 500PSIG @ 100^oC
• 316 Stainless Electrodes, Peek Insulator
• 3/4 inch Male NPT process connection
• Optional Explosion-proof junction box

For sample line installations such as boiler water where the pressure cannot be reduced, the CS41 Two Electrode Conductivity Sensor provides a great option.

Wetted Material

• Electrodes: 316 Stainless Steel
• Insulator: PEEK
• Seals: EPR (dual o-ring)
• Mounting: 316 Stainless Steel

Temperature Compensation

• PT100 RTD
• PT1000 RTD
• 8550 Ohm (Honeywell)
