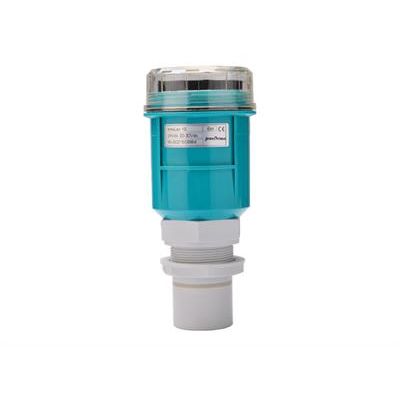

Innolev - Model 10 -Ultrasonic Level Meter
The innoLev10 / 20 series adopts advanced, non-contact ultrasonic measurement technology for the measurement of various liquid and solid levels. The probe outer wire can be mounted directly on the flange or fixed bracket. Friendly interface and four settings button allows users to operate more easily and more convenient.
Most popular related searches
ultrasonic level meter
ultrasonic level
water purification
sewage treatment
water purification treatment
level probe
temperature sensor
liquid level probe
water purification application
water treatment sewage
Application:
- Water purification and sewage treatment, electricity, petrochemicals
Features:
- Easier installation method
- Removable display module
- 4 keys
- Built-in temperature compensation sensor
- Use a unique digital extraction technique to handle echoes
innoLev 10 General Type
- 0.25~6m 2 wire system or 4 wire system
- 0.4~10m 2 wire system or 4 wire system
- Name Integrated Ultrasonic Level Meter
- Range 6m/10m
- Blind Zone 0.25m/0.4m
- Accuracy 0.2%f.s.
- Resolution 1mm
- Working Tempewrature -30~70℃
- Max. Pressure 1bar
- Material PC/PP
- Power Supply 24VDC
- Output
- 2-wire system：4-20mA，Max 750Ω
- 4 wire system：4~20mA+Modubus Protocol+2 lines of relays
- Connection G2”
- Protection Grade IP67
- Application Liquid/solid
