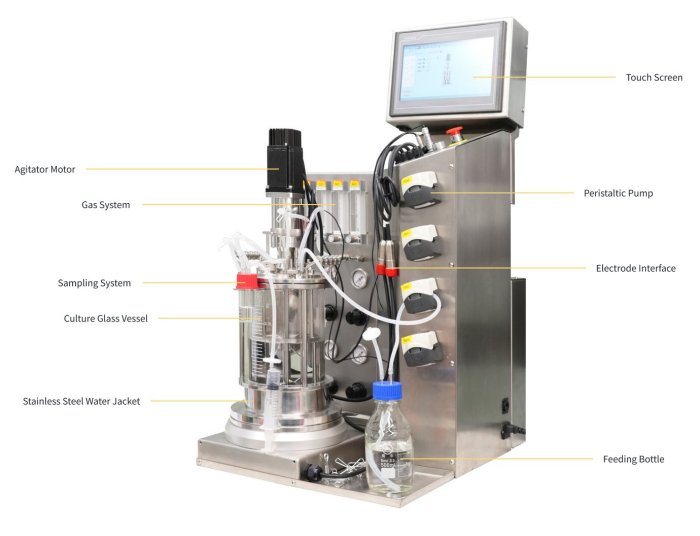

Innova - Model CGC -Benchtop Cell Bioreactor

Vessel:

• The volume is 0.2~ 50L, which can be customized freely.
• Round bottom design, more precise processing, and better mixing.
• Double-wall or single-wall glass vessel provides maximum heat transfer for rapid temperature control.
• Equipped with magnetic stirring with better sealing, different types of stirring paddles can be replaced.

Controller:

• 10″ touch screen, easy to understand and use.
• The controller combines measurement and control hardware for excellent process control.
• Standard with 4 peristaltic pumps, the functions of each peristaltic pump can be switched, and external pumps can be configured.
• With an external chiller optional, you don`t have to worry about finding a suitable cooling water source for your bioreactor.

Control System:

• With a mature, stable, universal Siemens PLC control system to realize automatic control.
• With the functions of real-time display, data recording, data analysis, output printing, password management, abnormal analysis, over limit alarm, etc.
• With USB interface, data can be copied directly by USB.

Running Modes:

• Manual control: You can open the valve or set the percentage of valve opening.
• Automatic control: You can select continuous or PID control the switch.
• Sequence control: The control of all parameters can be pre-set with at least 10 control sections.
• Automatic segmentation remote control: PC control.
• Related control: Rotating speed & dissolved oxygen, gasping & dissolved oxygen, feeding & pH, etc.

Volume: 0.2~50L (optional)
Load rate: 30%~70%
Vessel material: Borosilicate glass
Gassing: Four air intakes
Gas control: Standard: rotor flowmeter (manual )
Optional: mass flowmeter (automatic)
Sterilization: In autoclave
Basic control: Temperature, rotating speed, pH, DO, antifoam, feeds
Peristaltic pump: Standard 4 pcs
Stirring mode: Magnetic stirring
