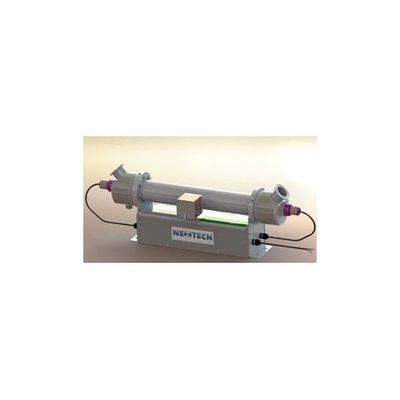

SnowPure - Model UV -Innovative Ultraviolet Reactor for Disinfection and TOC
SnowPure provides a unique UV water treatment system that is the new standard for Microbial Disinfection, TOC Reduction (Total Organic Carbon), and Chlorine Removal. This patented product line utilizes “Reflex®” a highly-reflective UV treatment chamber that maximizes the use of the ultraviolet light emitted, and saves 80-90% of the power required. Most UV lose 80-90% of their UV photons, which are absorbed by steel, even polished steel.
UV technology is a chemical-free process. Traditional UV uses (and wastes) a lot of electricity, and the cost of annual bulb replacement is high. Beverage, pharmaceutical, and semiconductor plants all benefit from our UV products’ energy-saving innovation and enhanced performance capabilities. The UV products we offer can save customers thousands of dollars by reducing capital, operating, and replacement costs.
The benefits to our UV products unique compact design and greatly improved efficiency include:
- Reduced total cost of operation
- 85-90% lower power consumption
- 85-90% fewer bulbs to replace
- UV photon distribution is uniform, resulting in better disinfection
- Reactors are compact
- Run vertical or horizontal, run dry for up to 1 hour
- 3x to 7x increase in efficiency
The operating cost savings results from energy savings and bulb replacement savings.
UV Wavelength
Products can be configured with:
- 254 nm, for disinfection, and/or
- 185 nm, for TOC reduction
UV Reactor products are made from high-quality materials and exceed the rigorous demands required for industrial grade equipment. All units are FCC approved and TUV Rheinland Certified and meet requirements for CE, UL and CSA.
- No concentrate recirculation or brine injection
- Thin-Cell efficient technology
- Thin-Concentrate non-scaling technology
- Unique non-scaling electrode system
- Patented Excellion membranes
- Electropure,w EDI technology was born in 1977, before lonpure
- SnowPure is privately held
- SnowPure is your partner, not a competitor
- High quality Electropure`" EDI training and OEM support
- Continuous Process-no upsets
- Operating cost is minimized
- No hazardous waste, no associated costs and risks
- No regeneration acid or caustic
- Flexible—easy to expand a modular EDI system
- Reliable—no recirculation system components to fail
- SnowPure believes strongly in training—this helps ensure field success with Electropure"- EDI systems.
- SnowPure assists new OEM customers through their system design phase, both during the OEM training and during the design process. Support includes reviews of P&l diagrams and feedwater requirements.
- Combined with ongoing Technical Service, we help ensure success.
