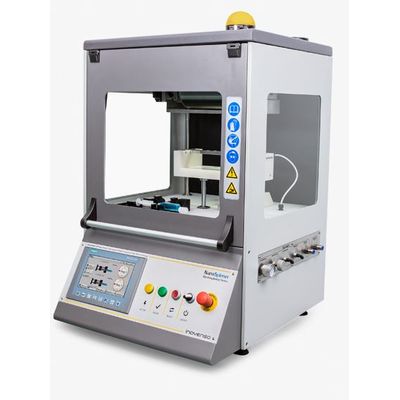

Inovenso - Model NE200 -Single Nozzle Electrospinning/Spraying Machine
The NE200, is the ultimate combination of advanced features in a budget-friendly model. Ideal for scientists who want to initiate their researches in a versatile system. The machine comes with a flat collector and a rotating drum collector to obtain well-aligned nanofibers, but can also optionally accommodate other types of collectors such as the Rotating rod collectors with different sizes to obtain tubular structure of nanofibers known as tube-like nanofibers membranes which can be used as artificial blood vessels.
- Reliable and precise process adjustments via 9” touch screen panel
- High throughput production
- Single nozzle electrospraying and electrospraying
- Changeable flat collector types
- 30-230mm nozzle to collector automatic distance adjustment
- Humidity and temperature control chassis option
- Extra safety options such as safe-door and warning light to avoid from high voltage
- Produced according to safety regulations and CE Certified
Electrospinning needles with the following diameters: (23G, 21G, 19G, 17G, 15G) X10 pieces.
Special Designed Coaxial Nozzle (Inner Diameter: 0,8 mm, Outer Diameter: 1,6 mm) and an extra syringe pump to obtain core-shell, hollow and bi-component nanofibers.
Gas Shield is a way to solve clogging of polymer on the top of needle by solvent saturated N2 gas. This option may increase productivity of many polymer solutions.
3-4-5 and 6 mm diameter rotating shaft collectors for tubular nanofiber membrane production.
Heating of spinning area up to 40°C.
Ambient humidity adjustment between 25% and room condition.
Vacuum fixing of solid substrates (metal, glass, thin plate, lamella) on stationary plate collector.
Standard Devices come with 1 year warranty. In addition, it is possible to cover machine with extended warranty.
