Sanitary butterfly valves A480, whether manually or automatically operated, can be used in most liquid product applications in the food-processing, pharmaceutical and chemical industries. The design of the butterfly valve between flanges A490 facilitates its installation and maintenance, allowing the extraction of the valve by means of 4 screws while the flanges welded to the installation remain fixed.

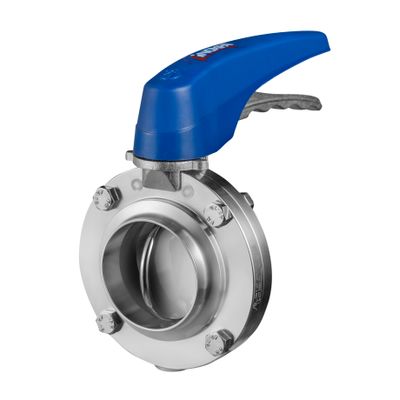

Sanitary butterfly valvescan be operated automatically through an actuator (sanitary pneumatic butterfly valve, sanitary butterfly valve with pneumatic actuator) or manually with a handle. The handle blocks the valve in the "open" or "closed" position, although there are also other models with intermediate positions. The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.Most popular related searches
butterfly valve
sanitary butterfly valve
sanitary valve
pneumatic actuator
butterfly valve flange
pneumatic valve
pneumatic actuated butterfly valve
pneumatic actuator valve
valve actuator
gaskets
Hygienic design according to EHEDG guidelines.
Easily interchangeable manual handles and pneumatic or electric actuators.
Low pressure losses.
Body halves interchangeable with any connection type.
Traceability of components.
Gaskets comply with USP CLASS VI requirements.
Disc 1.4404 (AISI 316L)
Body halves 1.4307 (AISI 304L) or 1.4404 (AISI 316L)
Other St.St. parts 1.4307 (AISI 304L)
Gasket EPDM, HNBR, VMQ or FPM
Surface finish:
Internal Ra ≤ 0,8 µm
External Machined
