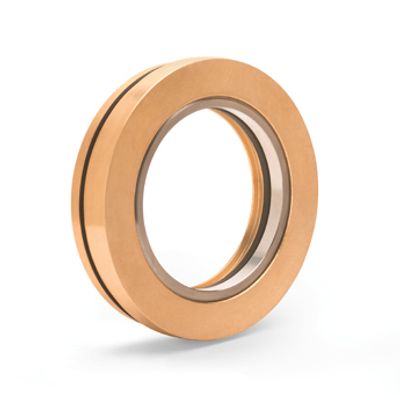

Inpro- Seal - Model VBMag -Bearing Isolator
FromInpro/Seal
The VBMag Bearing Isolator offers protection in challenging lubrication environments. Inpro/Seal`s latest innovation in Bearing Isolator technology utilizes magnetic force to provide maximum bearing protection against lubrication loss and contamination ingress for flooded, oil mist and high oil splash bearing conditions, which are often found in pumps and gearboxes.
Most popular related searches
- Rotating Sealing Face - precision lapped PTFE component energized by rare earth magnets runs against the stationary sealing face, creating a liquid tight seal
- Stationary Sealing Face – precision lapped 416 stainless seal component provides the hard running surface for the rotating sealing face
- Rare Earth Magnets – distributed equally around rotor to enable consistent loading among seal faces, ensuring long seal life
- Rare Earth Magnet Orientation – placement prevents metal particles from reaching and damaging the sealing faces
- Retaining Ring – unitizes components while allowing maximum lubrication to reach sealing faces
- Standard Material – Bearing Bronze
- Axial Movement – 0.25 mm (0.010 in.)
- Radial Movement – 0.25 mm (0.010 in.)
- Temperature Range – -26°C (-15°F) to 149°C (300°F)
- Speed – 4,000 sfpm
- Standard Overall Length – 17.78 mm (0.700 in.)
- Shaft Size – 15.88 mm (0.625 in.) to 120.65 mm (4.750 in.)
