Inpulse - InStation 2G Control Unit

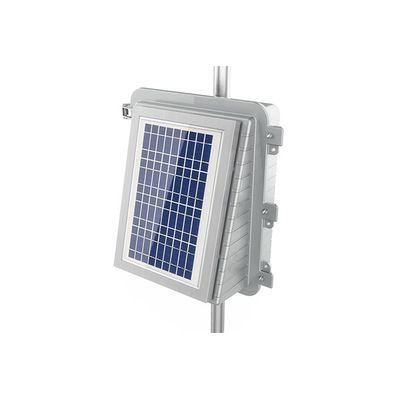

The InStation 2G Control Unit by Inpulse is an advanced autonomous system designed for precise field and weather condition monitoring. Integrating buffer batteries and a solar panel for recharging, this unit offers reliable, uninterrupted service. It collects data from connected sensors at predetermined intervals and uses GSM technology to transmit this information to a dedicated platform, enabling users to view and manage the data effectively. Additionally, the built-in GPS receiver ensures accurate positioning, making it an optimal solution for both field and Off-Highway vehicle management.
Fully autonomous system for monitoring the field and weather conditions, thanks to a system of buffer batteries and a solar panel that recharges it.
Reads all data from the sensors connected to it at regular time intervals and transmits the measurements to a platform so that the data can be viewed and managed. The data is transmitted by GSM technology. The system has a GPS receiver that also measures the exact position of the device installed.
- Technology : GSM GPRS 2G and geo-location via GNSS. SIM technology on Chip.
- Battery : Internal buffer battery with Pb Gel 12Ah, recharged by photovoltaic panel
- Power Supply : Nominal 12VDC
- Absorption : 200mA
- Dimension : 420x390x230 mm
- Weight : Approximately 10 kg
- Water tightness : Grade IP65
- Connectable sensors : Up to 3 soil humidity sensors;
- Possibility to connect 1 soil temperature sensor
- Input : Leaf wetness sensor
- Input : Solar irradiation sensor
- Input : Connection of speed sensor and wind direction
- Input : air temperature and humidity detection
- Note : Batteries included
