Swenson Spreader LLC

Insert Dump Bodies

SHARE

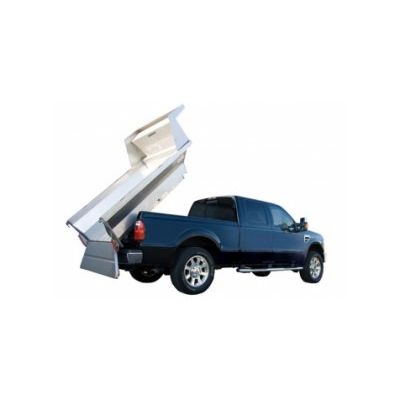

Converts standard pick up to a dump truck. 12V Monarch electric hydraulic pump. Carbon steel and stainless steel construction. Cab shield included. Double acting tailgate with metering chains. 1 piece sides and floor. 4,000 lbs and 7,500 lbs lifting capacity. Powder coat paint on carbon steel. 19 grease points. Self-locating body prop. 9’ tethered hand control. 46 degree dump angle

Most popular related searches
  • Size Specifications: IDB 6.5 – 75.5"L x 48"W (floor dimensions), IDB 8.0 – 93.5"L x 48"W (floor dimensions)
  • Capacity: IDB 6.5 – 4,000 lbs, IDB 8.0 – 7,500 lbs
  • Construction: Carbon steel / stainless steel
  • Dump Angle: 46 degrees
    • Steel Gauges: Carbon Steel – 14 gauge
    • Stainless Steel – 14 gauge
    • Stainless Steel HD – 12 gauge (8.0` only)
  • Safety Features: Self-locating body prop, 9` tethered hand control
  • Warranty Details: 1 year
  • Options: N/A
