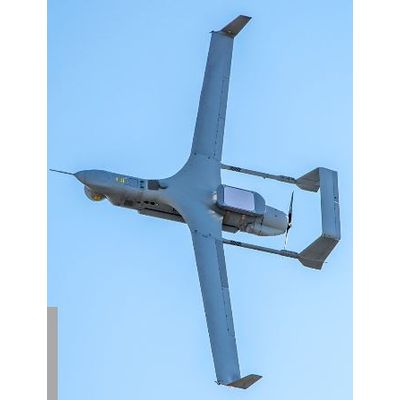

Insitu - Model SatCom BLOS -Integrator

Unmatched Endurance
Fly over the hill and across the ocean to access previously unreachable targets by eliminating line-of-sight restrictions

Group 4/5 Capabilities
Fly multi-int, multi-domain missions that challenge Group 4/5 asset capabilities at a fraction of the acquisition and operation costs with 27.5-hour endurance, 2000 nmi range, and 50lb of payloads across 10 bays

Safer Operations
Keep operators and deployed personnel at safer distances from dangerous environments

SATCOM C2 Options

• Proliferated Low-Earth Orbit (PLEO) constellations
• Medium-Earth Orbit (MEO)
• Geosynchronous Orbit (GEO)

Size and Weight

• Length: 8.2 ft / 2.5 m
• Wingspan: 15.7 ft / 4.8 m
• Max takeoff weight: 175 lb / 79 kg
• Payload Capacity: Up to 50lb / 23 kg

Performance

• Endurance: Up to 27.5 hours
• Ceiling: 20,000 ft / 6,096 m
• Max horizontal speed: 90+ knots / 46 m/s
• Cruise speed: 55 knots / 28 m/s
• Engine: High-efficient EFI using JP-5/Jp-8 (heavy) fuel

Sensors and Payload Options

• AC14 EO telescope (high-zoom day FMV)
• Dual Imager (MWIR/EO – day & night FMV)
• PT-6 AI-assisted maritime surface search
• NSP-5 SAR/MTI/CCD multi-int tactical radar
• WAMI Wide-area motion imagery for day (Redkite) and night (Blackkite)
• EOIR-5/Alticam 14 Laser designator/pointer/rangefinder
• Alternative Navigation (Alt-Nav)
• SIGINT, EW, comms relay, and more
• Kinetics
• Rapid integration of other customer-specific payloads available
• On-board connectivity: Ethernet
