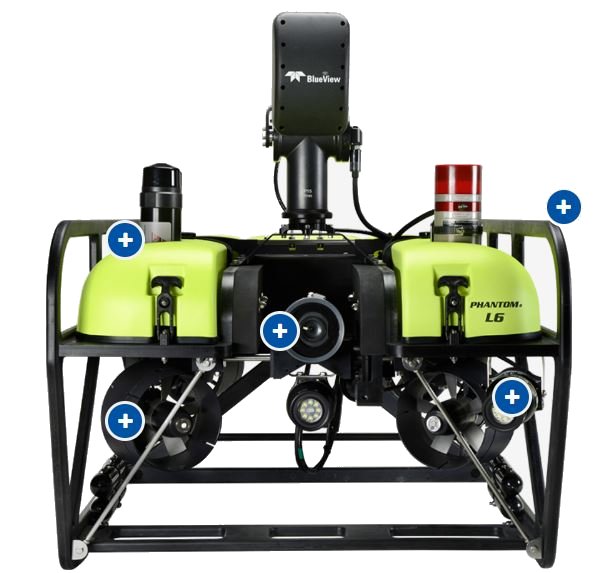

Phantom - Model L-Series -Inspection-Class Underwater Remotely Operated Vehicles
Powerful and Manueverable Inspection Class Vehicle. The Phantom ® L-Series is an inspection-class underwater remotely operated vehicle, designed for use in numerous applications across a spectrum of industries. The Phantom ® L6 is designed with four vectored horizontal and two vertical Tecnadyne thrusters, which provide significant control and propulsion in current. Applications for the L-Series, as underwater drone, include military/homeland security, law enforcement, science, municipalities, oil and gas, surveying, dam and infrastructure inspections, and cinematography.
The advanced technology of the Phantom® L-Series platform offers powerful maneuverability and lift, incorporates an open architecture to integrate a wide variety of sensors, and is hand-built on a rugged, resilient, non-corroding polypropylene chassis that can accommodate heavier payloads.
- Powerful maneuverability and lift
- Incorporates an open architecture
- Integrates with a wide variety of sensors
- Hand-built on a rugged, resilient, non-corroding polypropylene chassis
- Chassis accommodates heavier payloads
- One-year manufacturer’s warranty
- HD camera
- LED lighting
- Auto heading
- Auto depth
- Control console and power unit
- 300m copper umbilical
- Upgraded umbilicals
- Cameras
- Lights
- Multi-beam scanning sonars
- Manipulators
- GPS, INS, DVL and navigational software
- Configuration : 4 vectored horizontal, 2 vertical
- Forward Thrust : 68.0kgf (151 lb)
- Lateral Thrust : 39.0kgf (87 lb)
- Vertical Thrust : 49.0kgf ( 108 lb)
- Thrusters : Magnetically-coupled brushless thrusters
- Speed at Surface : 3.0 knots
- Depth rating : 500 meters (1640 ft.); 800 meters optional
- Length : 1066.8 mm (42 in)
- Width : 800.1 mm (31.5 in)
- Height : 571.5 mm (22.5 in)
- Weight in air : 97.5 kg (215 lbs.)
