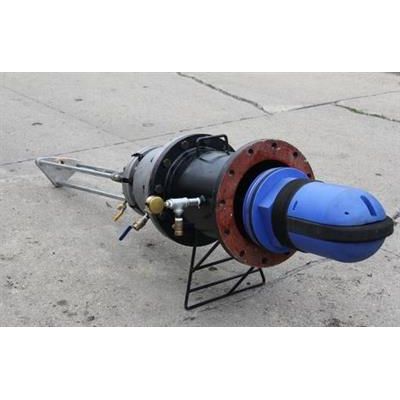

Hydra-Stop - Insta-Valve Installation Equipment

SHARE

Hydra-Stop installation equipment is designed to safely install Insta-Valve 250 Patriot insertion valves into your distribution system, without any shutdowns. Utilizing the IV 250 Patriot installation equipment, a trained crew can install a 4" to 12" valve in just under two hours.

Most popular related searches
gate valve

The complete 4" to 12" kit comes with all the equipment necessary to install Insta-Valves, including:

  • Hydra-Tapper tapping machine
  • Feed screws
  • Saw mandrels
  • Cartridge insertion tools
  • Carbide cutters
  • Pilot drills with coupon retention clips
  • Temporary gate valves
  • Guide plate
  • P-20 adapter (10”– 12” kit)
  • Stop collars
  • Drive unit (hydraulic or air)
  • Alignment gauge kit
  • … and more
  • Dimensions: 4-8” Bonnet measures 13.5 inches. 10-12” Bonnet measures 18.5 inches.
  • Weight: 4-8” Bonnet weighs 50 lbs. 10-12” Bonnet weighs 80 lbs.
  • Bolt Hole Pattern: Bolt hole pattern for both the 4-8” and 10-12” bonnet is based on a 10.5” bolt hole circle.
  • Bolt Hole Depth: Bolt Hole depth is .750 inches.
