Aliaxis - Model BS -Installation Kits for Ball Valves and Tapping Ball Valves

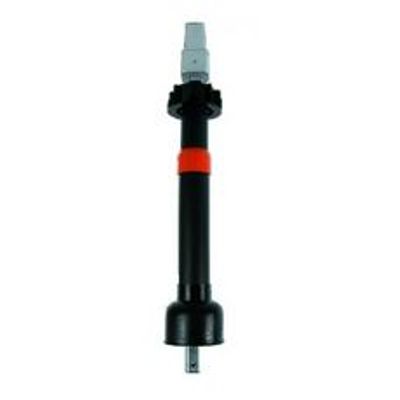

Telescopic actuating rod for operation of the FRIALEN-KHP, KH, KHW, AKHP and AKHP-TL from the valve cover. Stepless adjustment in the stated range (RD) without the use of tools, even in the installed state. Self supporting in any extended position. Corrosion proof. Wrench size 14 specially designed for domestic connection.
Most popular related searches
ball valve
telescopic rod
valve actuator
telescopic valve
actuated valve
water protection
polyethylene pipe
Areas of Application
Telescopic actuating linkage for operation of the FRIALEN KHP, KH, KHW, AKHP und AKHP-TL from the street cap.
Assembly Instructions
Before fusion, the FRIALEN KHP, KH, KHW, AKHP and AKHP-TL must be aligned to suit the type of actuation intended, in order to ensure that the installation kit BS will seat correctly.
Good reasons for using the FRIALEN-Installation kits BS:
- Protective pipe of polyethylene protects from intrusion of sand or soil
- Assembly without tools
- Self supporting in any extended position
- Safe from being pulled out
- Corrosion proof
- Telescope assembly set can be adjusted even once in place and filled
- Constructive harmonizing of the transferable torque onto the FRIALEN-Ball Valve
- Connection pins made from stainless steel
- Coloured marking disk for use with gas and water
- Parts of the protective pipe are fully welded together
