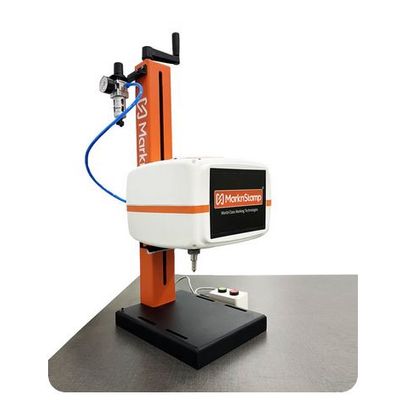

Instrumark - Model MNS-PC -Computer Based Machine
The rugged workhorse of marking, the MNS PC machine is available in pneumatic and electro-magnetic versions. Mounted on a large stand the machine comes with standard 2 axis up-gradable to 3-4 axis. It can be connected to Ethernet or Wifi for seamless working and delivers accurate and deep permanent markings suitable for various applications as well as reading and printing bar codes. It integrates easily with other machines and devices and is flawless in marking alpha numeric applications.
- Versions: Electric and Pneumatic Versions available.
- Marking Area: 120mm x 100mm
- Standard Stylus: PH-16 for Continuous Marking or LP-10 for dotted Marking.
- Pin Vibrations: Both Dot peen and Vibro peen available.
- Power Supply: Separate 24VDC 5A Power Adapter
- Inputs: 5 Inputs for automatic design selection.
- Outputs: 2 Outputs, end of marking, machine ready for marking & error.
- 2D Barcodes: Datamatrix & QRCode Marking Possible.
