Rosemount - Instrument Manifolds
Rosemount Integral, inline and conventional manifolds with a range of valve configurations for pressure transmitters and gauges.
Most popular related searches
Connect to Any Process Application
Choose from manifolds in Block-and-Bleed, 2-, 3- and 5-valve configurations and in Rosemount Coplanar™, threaded and traditional process connections.
Reduce Installation and Maintenance Costs
Eliminate the instrument flange with the Rosemount Coplanar design to reduce potential leak points by up to 50%.
Work More Efficiently
Add measurement points easily with a complete leak-tested and calibrated pressure measurement assembly.
Models and Configurations

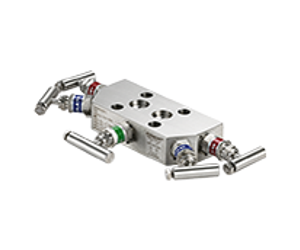

Rosemount 305 Integral Manifold
- 50% fewer potential leak points than conventional transmitter to flange to manifold interface
- Assembles directly to transmitter, eliminating need for flange
- Available in coplanar and traditional styles
- 2-,3- and 5-valve configuration
- Compact, lightweight assembly

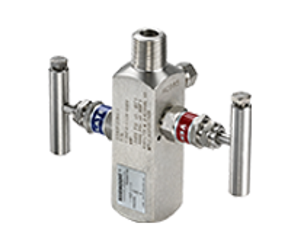

Rosemount 306 Inline Manifold
- Assembles directly to in-line pressure transmitters
- Block-and-Bleed and 2-valve configurations
- Male or female NPT process connection

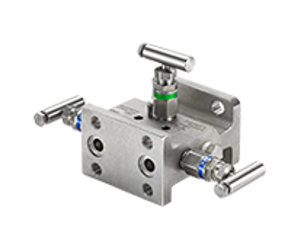

Rosemount 304 Conventional Manifold
- Assembles to transmitter flange in accordance with IEC 61518
- Traditional (Flange x Flange, Flange x NPT) and Wafer styles
- 2-,3- and 5-valve configurations
