Vitrovex - Model NMS-IS -Instrument Spheres

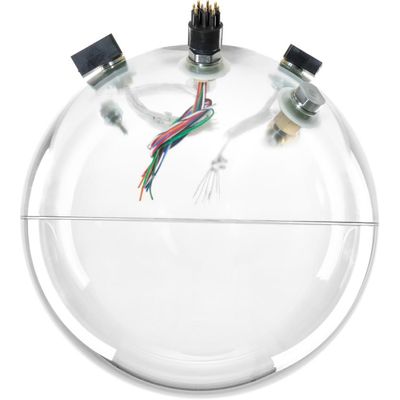

VITROVEX instrument spheres are composed of two mated hemispheres that are evacuated and locked into position by a sealant and a protective tape. Once the spheres are sealed, the two hemispheres are kept together by the atmospheric pressure on land and the pressure of the water column when deployed. Instrument housings usually incorporate a vacuum port to facilitate repeated sealing and unsealing actions.
Parting plane sealing faces and ground flats around drill holes are honed to a precise flatness and finish by means of a triple grinding process including milling with diamond tool, manual smoothing and polishing where appropriate.
Precision moulding of the highest quality glass, skilled craftsmanship and strict quality control ensures that VITROVEX spheres show very little deviation in shape even under high pressure. VITROVEX spheres are to a very large degree free of imperfections, and hemispheres of the same outside diameter and wall thickness are completely interchangeable, individually replaceable and require no special alignment during assembly.
The table below shows the characteristics for the most common instrument spheres and their configuration options. This list shall be regarded as selection guide rather than a definitive list.
If your preferred glass enclosure is not listed, please get in touch with Nautilus Marine Service or your nearest representative to discuss more options.
