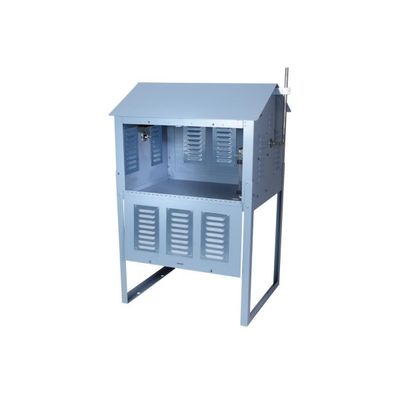

HI-Q - Model WH-36 & WH-40 -Instrument Weather House
HI-Q’s Instrument Weather House with its heavy gauge, primed and painted, aluminum body is ideal for protecting instruments from harsh outdoor sampling environments. The WH-36 & 40 series Instrument Weather Houses conveniently house and protect air sampling and other instrumentation. Two, large, 14” x 26” heavy duty piano hinged access doors allow an operator to conveniently mount and maintain instrumentation and equipment. Both access doors may be closed with twist pins and then secured with a padlock.
Most popular related searches
- Overall Dimensions (w/ Standard Legs) : 48”Tall x 26”Deep x 32”Wide”
- Overall Dimensions (w/ Extended Legs) : 67”Tall x 26”Deep x 32”Wide”
- Overall Cabinet Dimensions (w/o legs) : 24”Tall x 26”Deep x 32”Wide”
- Assembled Weight (w/ Standard Legs) : 42 pounds (WH-36) & 45 pounds (WH-40)”
- Material- House/Doors : 0.09”Sheet Aluminum
- Standard Legs (Welded U-Frame Set) : 30”Tall 1.5”x 1.5” (0.90”Aluminum)
- Extended Legs (Welded U-Frame Set w/ Cross Braces) : 49”Tall x 1.75”x 1.75” (0.125”Aluminum)
- Access Doors : Two doors, one on each long side mounted on heavy duty piano hinges giving full 26”wide x 14”tall free access from both sides of the house.
- Security : Double thumb-twist locks with pad lockable hasp on each access door.
- Material Finishing : Material is acid wash primed and then painted with
- 2-component, high solid polyurethane paint with a bake finish.
- Color Options : Stocked Colors are White & Blue. Other Custom colors are available upon request.
